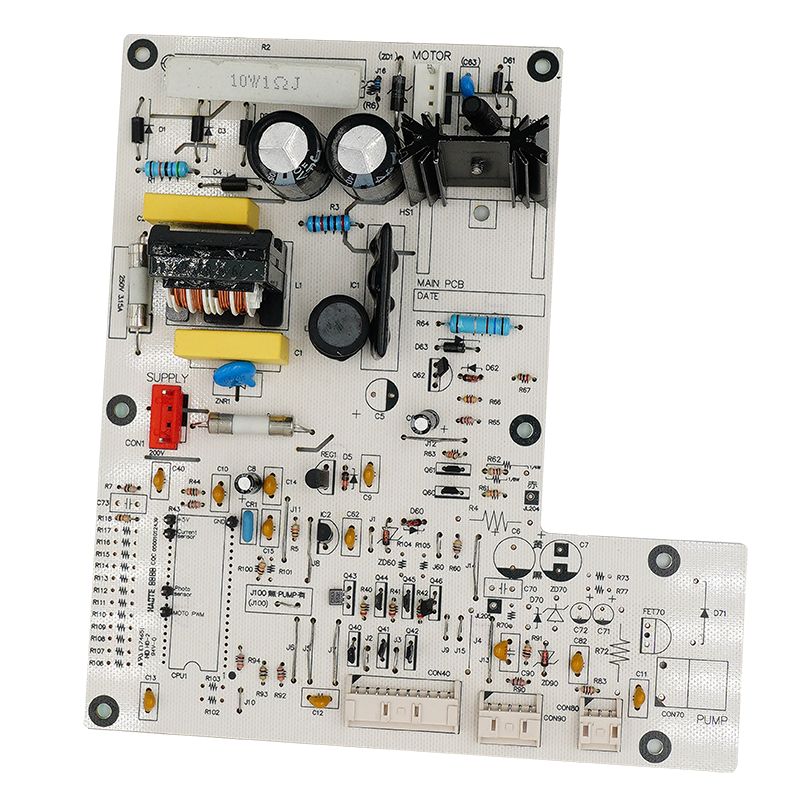

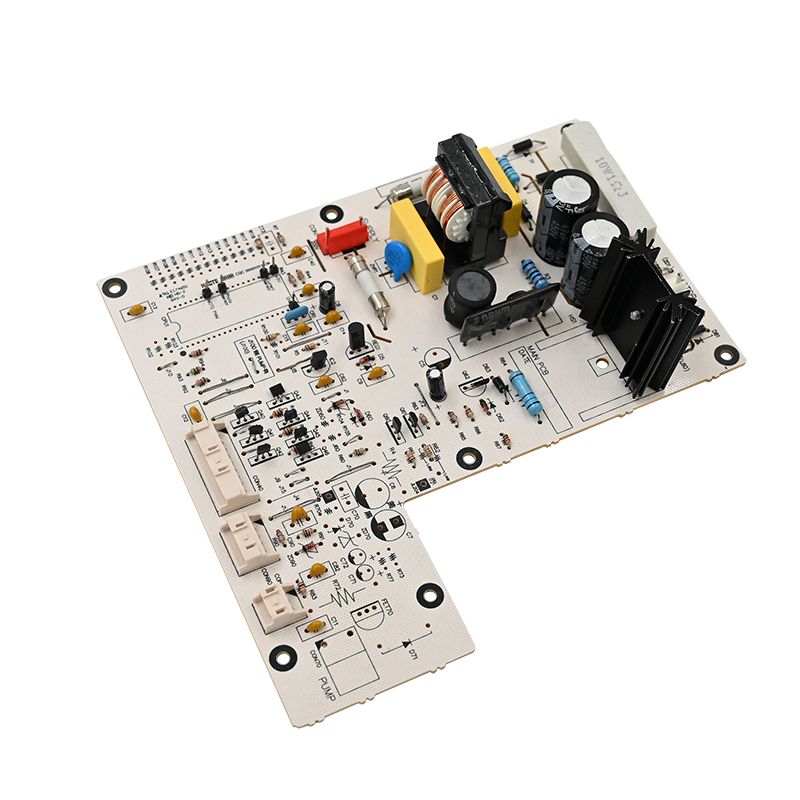

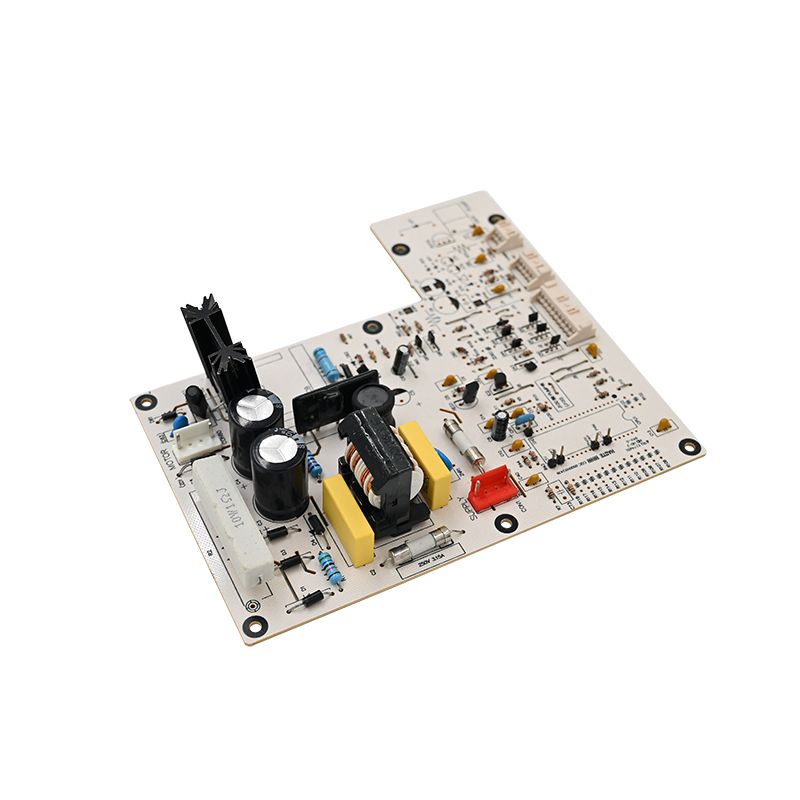

Water Dispenser PCBA
  • Water Dispenser PCBAWater Dispenser PCBA
  • Water Dispenser PCBAWater Dispenser PCBA
  • Water Dispenser PCBAWater Dispenser PCBA

Water Dispenser PCBA

Unixplore Electronics is a Chinese company that has been focusing on creating and producing first-class Water Dispenser PCBA for Automobile rear light since 2008. We have certifications to ISO9001:2015 and IPC-610E PCB assembly standards.


Send Inquiry

Product Description

How to find a trustworthy manufacturer for Water Dispenser PCBA?

Unixplore Electronics has been committed to High quality Water Dispenser PCBA design and manufacture since we built in 2011 with ISO9000 certification and IPC-610E PCB assembly standard.

There are several ways to find a trustworthy manufacturer for water dispenser PCBA. Here are a few steps you can consider:

Research and compare: Start by researching and comparing different manufacturers. Look for companies that specialize in manufacturing water dispenser PCBA and read reviews or testimonials from their previous clients.

Verify credentials: Check the credentials of the manufacturer and ensure that they have the necessary certifications for their products. Verify their license, registration, and quality management system.

Ask for samples: Ask the manufacturer to provide you with samples of their products. Examine the quality of the samples to ensure that they meet your standards.

Request references: Ask the manufacturer to provide you with a list of references from their previous clients. Contact these references to learn more about their experiences working with the manufacturer.

Request a factory tour: If possible, request a factory tour to see their manufacturing process firsthand. This will give you an idea of their facilities and their commitment to quality control.

Negotiate the terms: After you have found a trustworthy manufacturer, negotiate the terms and pricing with them. Make sure that you agree on the payment terms, delivery schedule, and other important details before proceeding with the order.

Unixplore provides one-stop Turn-Key service for your EMS and PCB assembly projects. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!

Water Dispenser PCBA for Automobile Rear Light Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter Capability
Layers 1-40 layers
Assembly Type Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size 0201(01005 Metric)
Maximum Component Size 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width 0.10 mm (4 mil)
Minimum Trace Clearance 0.10 mm (4 mil)
Minimum Drill Size 0.15 mm (6 mil)
Maximum Board Size 18 in x 24 in (457 mm x 610 mm)
Board Thickness 0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type Leaded or Lead-Free
Copper Thickness 0.5OZ – 5 OZ
Assembly Process Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Water Dispenser PCBA for Automobile Rear Light for Electric Vehicle Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance

PCBA Production Procedure

  • Water Dispenser PCBA

    1. Automatic solderpaste printing

  • Water Dispenser PCBA

    2. solderpaste printing done

  • Water Dispenser PCBA

    3. SMT pick and place

  • Water Dispenser PCBA

    4. SMT pick and place done

  • Water Dispenser PCBA

    5. ready for reflow soldering

  • Water Dispenser PCBA

    6. reflow soldering done

  • Water Dispenser PCBA

    7. ready for AOI

  • Water Dispenser PCBA

    8. AOI inspection process

  • Water Dispenser PCBA

    9. THT component placement

  • Water Dispenser PCBA

    10. wave soldering process

  • Water Dispenser PCBA

    11. THT assembly done

  • Water Dispenser PCBA

    12. AOI Inspection for THT assembly

  • Water Dispenser PCBA

    13. IC programming

  • Water Dispenser PCBA

    14. function test

  • Water Dispenser PCBA

    15. QC Check and Repair

  • Water Dispenser PCBA

    16. PCBA conformal coating Process

  • Water Dispenser PCBA

    17. ESD packing

  • Water Dispenser PCBA

    18. Ready for Shipping



Water Dispenser PCBA
Water Dispenser PCBA
For Finished Product

Water Dispenser PCBA
Water Dispenser PCBA

Hot Tags: Water Dispenser PCBA, China, Manufacturers, Suppliers, Factory, Customized, Cheap, Quality, Advanced, CE, 1 Year Warranty, Price
