Core Differentiators for RC Car PCBA

Not all RC car PCBA designs perform equally. Six factors create the real difference.

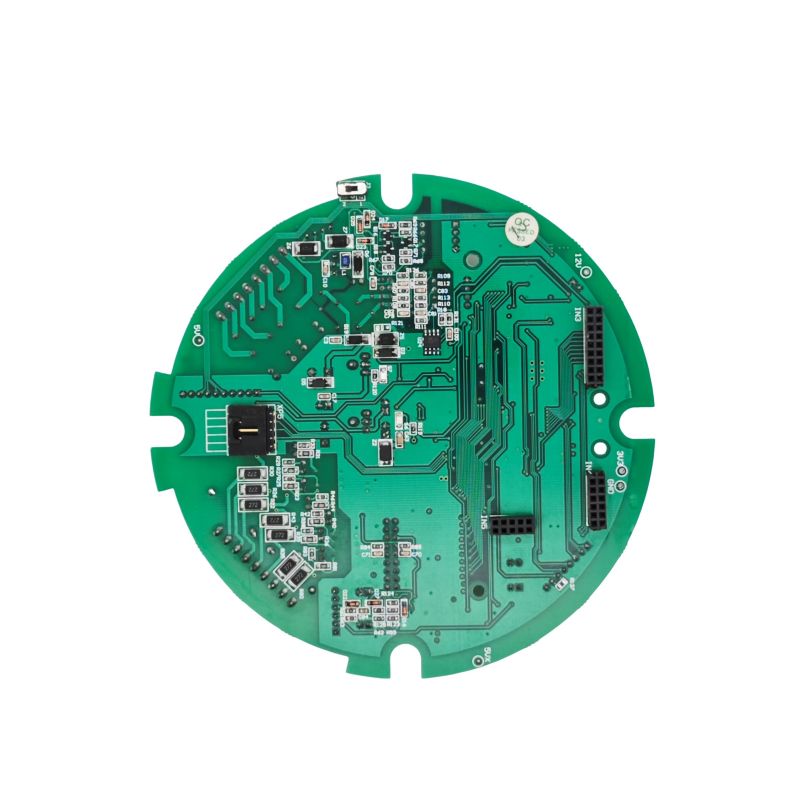

Motor Drive Stage -- Where Most Designs Fail

Difference maker: A hobby-grade RC car PCBA uses separate high-side and low-side MOSFET drivers with programmable dead time. Toy boards use integrated half-bridge ICs that overheat in 2 minutes of off-road use.

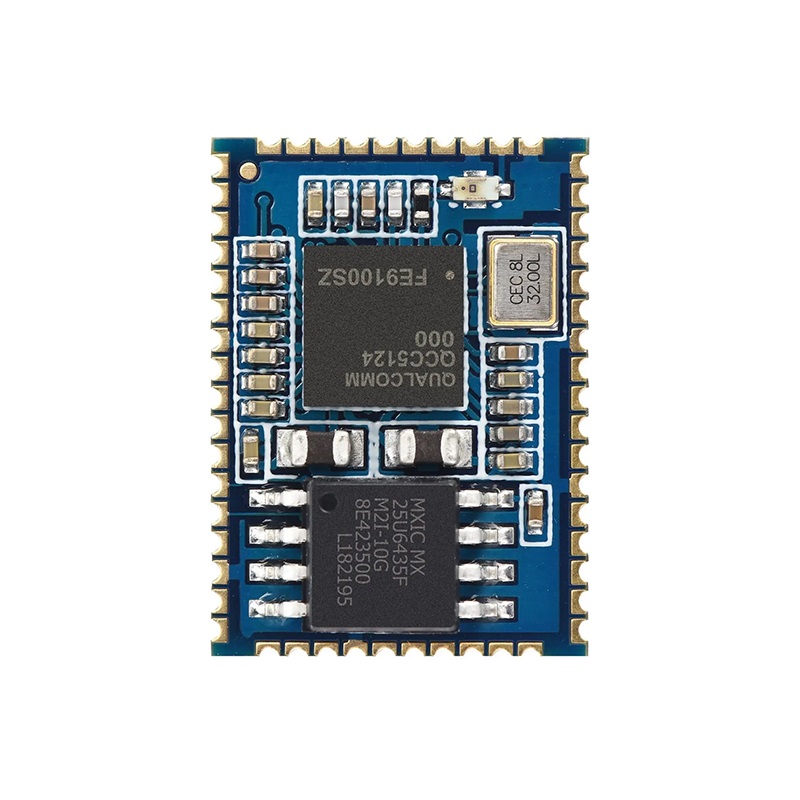

Radio Receiver Sensitivity and Selectivity

Difference maker: A quality RC car PCBA includes a separate LNA (low-noise amplifier) before the receiver IC. This adds 15 dB of gain without degrading noise figure, allowing control at 300+ meters.

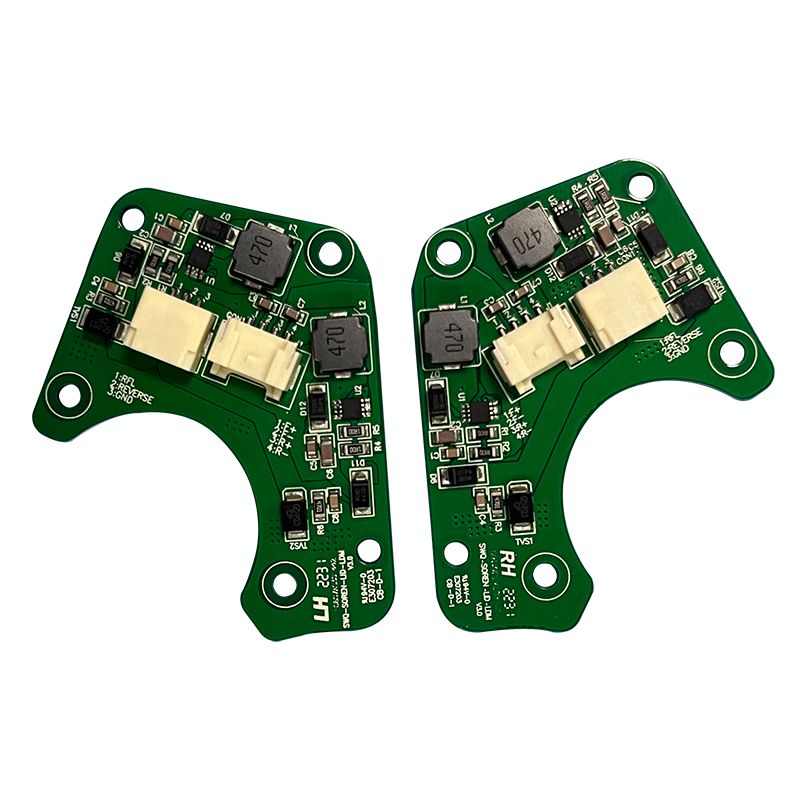

Power Management Differences That Matter

Voltage stability under motor load determines if the RC car PCBA resets during hard acceleration.

Battery Input and Regulation

Critical difference: The MCU on a RC car PCBA must stay alive during motor stalls that drop battery voltage from 8.4V to 5.0V for 10 milliseconds. Use a buck-boost or a large capacitor bank (1000 µF low-ESC) on the 5V rail.

BEC (Battery Eliminator Circuit) Performance

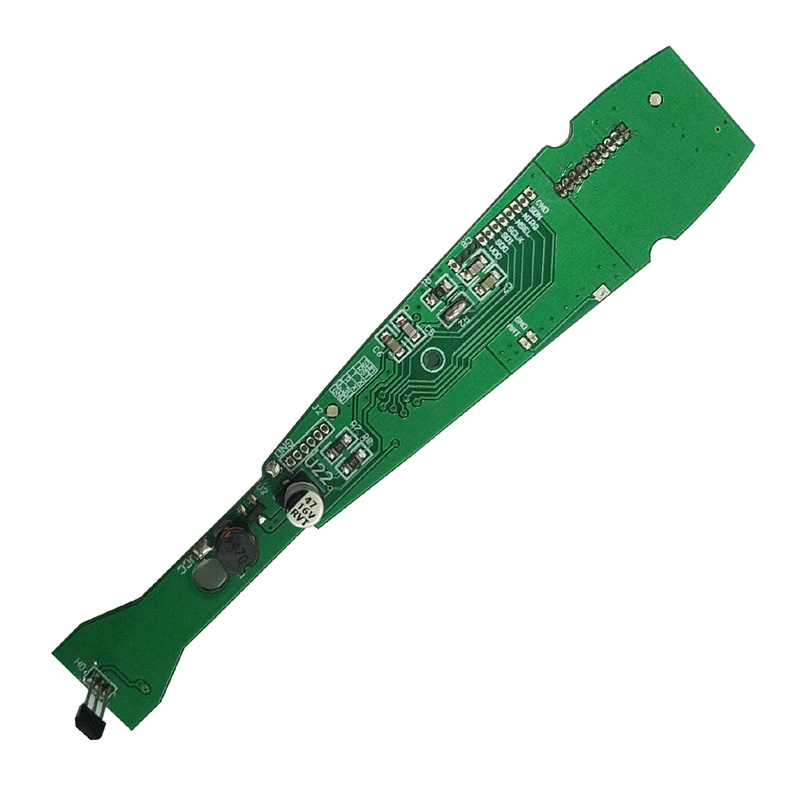

Layout and Shielding Differences

The RC car PCBA operates inside a plastic chassis with motors, wires, and spinning gears. Noise is everywhere.

Noise Isolation Techniques

Difference maker: A quality RC car PCBA places the RF section in a separate ground island connected to main ground at a single point near the battery negative terminal.

Crystal and Oscillator Placement

- Keep 27 MHz crystal (or TCXO for 2.4 GHz) at least 15 mm from motor wires

- No digital traces running under crystal

- Ground guard ring around oscillator (via stitch every 2 mm)

- Load capacitors matched to crystal specification (±5 pF)

Firmware and Control Loop Differences

Hardware alone does not make a difference. The control algorithm separates responsive cars from sluggish ones.

Throttle and Steering Curves

Implementation: The RC car PCBA MCU must run PID loops at 1 kHz minimum. 100 Hz loops produce noticeable lag. Use a Cortex-M4 or similar with hardware multiply-accumulate.

Failsafe and Telemetry

- Signal loss failsafe -- Set throttle to zero after 0.5 seconds of no packets

- Low battery failsafe -- Reduce throttle to 50% at 6.0V, cut at 5.5V

- Optional telemetry -- Battery voltage, motor temperature, RSSI sent back to transmitter

A quality RC car PCBA implements failsafe in hardware (separate comparator) not just in software. If MCU locks up, hardware pulls throttle to zero.

Production Tolerances and Testing

Mass production reveals differences. Tight tolerances create consistent performance.

Critical Production Specifications

Functional Testing Protocol

Every RC car PCBA should pass:

1. No-load motor test -- Current < 1A, no audible whine

2. Stall test -- 30A for 2 seconds, no thermal shutdown

3. Range test -- 100 meters in open field with antenna down

4. Interference test -- Operate 10 boards simultaneously, no channel clash

FAQ -- Common Questions About RC Car PCBA Differences

Q1: Why do some RC car PCBA designs lose pairing after a crash, while others do not?

A: The difference is mechanical stress on the crystal oscillator. A crash that stops the car suddenly creates a 200--500 G deceleration pulse. This shock shifts the quartz crystal's resonance frequency in two ways:

Frequency shift from mechanical stress -- The crystal blank temporarily deforms under G-force, changing its parallel resonant frequency by up to 150 ppm. If the receiver's PLL cannot track this shift (most low-cost designs have a 50 ppm capture range), the RC car PCBA loses lock and never reacquires because the deformed crystal now has a permanent offset.

Solder joint micro-fractures -- Small HC-49S crystals (common in toy RC) have heavy metal cases. Under 500 G, the case inertia stresses solder joints. A micro-crack that passes visual inspection creates intermittent contact. The RC car PCBA powers on (crystal works at low vibration) but fails as soon as the motor vibrates.

Solution in quality RC car PCBA:

- Use a MEMS oscillator (SiTime or similar) instead of quartz. MEMS devices survive 50,000 G and consume less power.

- If quartz is mandatory, use a 3.2×2.5 mm ceramic package (not HC-49S) with four-point soldering.

- Add underfill epoxy under the oscillator (a 0.5 mm bead on two edges absorbs shock).

A well-designed RC car PCBA survives repeated 1-meter drops onto concrete without losing binding. Test by dropping the assembled car 20 times from 1 meter, then verifying range. Cheap designs fail on drop 3 or 4.

Q2: How does MOSFET gate drive configuration affect RC car PCBA performance at partial throttle?

A: Partial throttle (10--40% duty cycle) is where most RC car PCBA designs reveal their weaknesses. Two gate drive parameters dominate:

Gate charge and Miller plateau -- When a MOSFET switches at partial throttle, it spends more time in the linear region (Miller plateau) where Rds(on) is not yet achieved. A MOSFET with high total gate charge (Qg > 50 nC) takes 200--300 ns to turn fully on. At 10% throttle (20 kHz PWM, 5 µs on-time), the MOSFET is only fully enhanced for 4.7 µs. The remaining 300 ns in linear region dissipates heat as (I × V). At 20A, this is 20A × 6V = 120W for 300 ns per cycle -- enough to raise junction temperature 40°C above ambient in 30 seconds.

Gate resistor value -- Toy RC car PCBA designs use a single 100Ω gate resistor for simplicity. This creates 500 ns rise times. Quality designs use separate turn-on and turn-off resistors: 10Ω turn-on (fast) and 100Ω turn-off (slower to reduce ringing). This produces 100 ns rise time, dramatically reducing linear region losses.

Measurement difference -- Test by running the RC car PCBA at 25% throttle on a dynamometer for 10 minutes. A poor design will show motor temperature 90°C and MOSFET case 110°C. A quality design (low Qg MOSFETs, separate gate resistors) runs motor at 60°C, MOSFET at 70°C. The cooler board lasts 5× longer.

Q3: What is the difference in antenna design between a 100-meter RC car PCBA and a 300-meter version?

A: Three antenna design elements create the 200-meter difference while using the same 2.4 GHz transmitter power (100 mW legal limit):

Antenna type and efficiency -- A PCB trace antenna (inverted-F) on a standard 1.6 mm FR-4 board achieves 40--50% efficiency (-3 to -4 dBi gain). The same RC car PCBA with an external 1/4 wave monopole (31 mm wire) achieves 70--80% efficiency (-1.5 dBi). A ceramic chip antenna (e.g., Johanson 2450AT18) with a tuned matching network reaches 60--65% efficiency. For 300-meter range, use a monopole antenna placed vertically (not coiled inside the chassis).

Ground plane size -- The antenna ground plane (counterpoise) must be at least λ/4 (31 mm) in length. Quality RC car PCBA designs reserve a solid ground area of 35×40 mm under the RF section. Toy boards place the antenna near the battery or motor, reducing effective ground plane to 15 mm. This detunes the antenna to 2.45 GHz -- actual resonance shifts to 2.6 GHz, losing 10 dB of sensitivity.

Feed line impedance -- A monopole antenna requires a 50Ω transmission line from the RF IC to the antenna feed point. This means a 1.5 mm wide trace on 1.6 mm FR-4 (microstrip) with a continuous ground plane underneath. Quality RC car PCBA uses a 50Ω trace with ground vias on both sides. Toy boards route the antenna through a 10 mm long, 0.3 mm trace (120Ω) with slots in the ground plane -- creating an impedance mismatch that reflects 40% of transmitted power.

Verification -- Ask your PCBA supplier for a Smith chart showing antenna impedance at 2.45 GHz. A good design shows 50Ω ± 5Ω. A poor design shows 30Ω or 80Ω. That single measurement predicts range difference more accurately than any simulation.

Comparison Table -- Toy vs Hobby RC Car PCBA

A superior RC car PCBA is not about expensive components. It is about correct gate drive, proper antenna design, failsafe hardware, and tight production tolerances. Focus on MOSFET switching losses and RF ground plane size -- these two areas produce the most noticeable difference in real-world driving.
