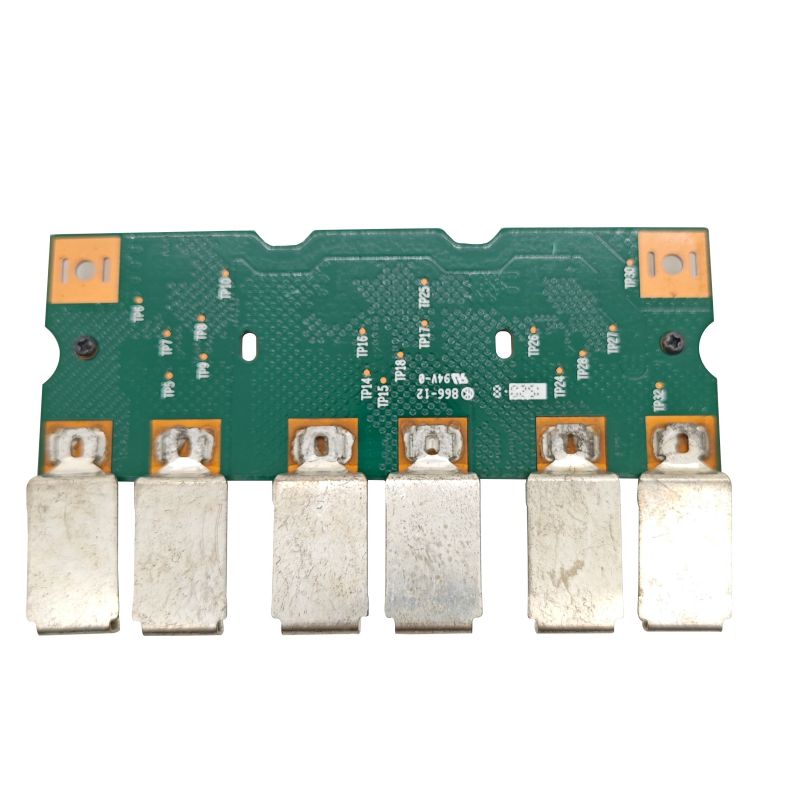

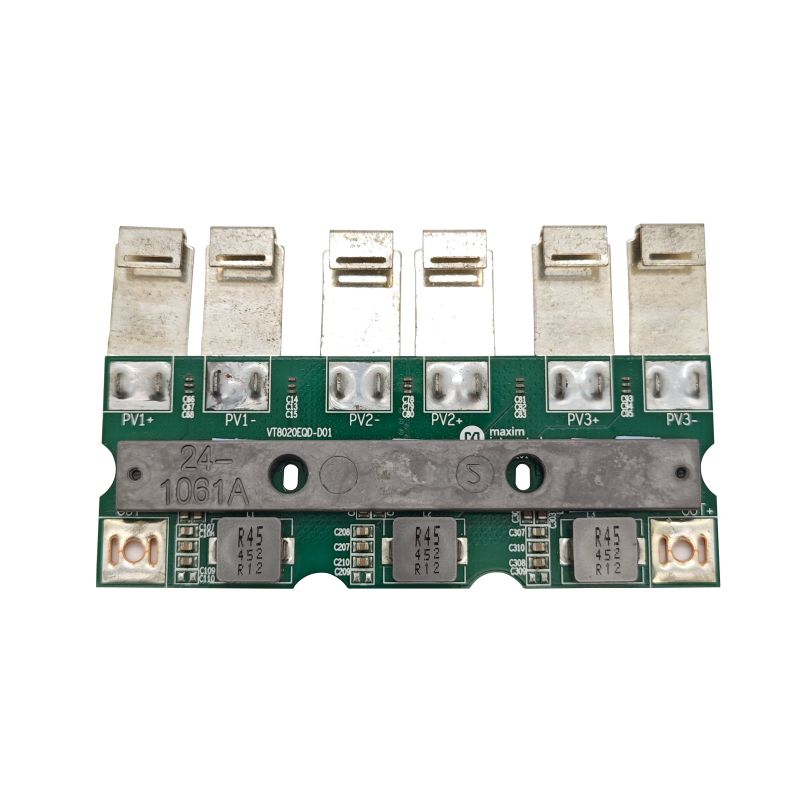

Mouse Trap PCBA

Unixplore Electronics has been committed to designing and manufacturing high quality Electronic Mouse Trap PCBA in China with certification of ISO9001:2015 and PCB assembly standard IPC-610E,which is widely used in various mouse trap devices for home and commercial applications.

Model:UE-166

Send Inquiry

Product Description


The strategies of sourcing a good factory for your Electronic Mouse Trap PCBA project

If you are looking for a comprehensive selection of Electronic Mouse Trap PCBA manufactured in China, Unixplore Electronics is your ultimate source. Their products are priced very competitively and accompanied by top-notch after-sales service. Moreover, they actively seek collaborative relationships that are mutually beneficial.


In order to find a good Electronic Mouse Trap PCBA(Printed Circuit Board Assembly) factory, you can consider the following methods:



Internet search: Use the search engine to enter keywords, such as "electronic mouse trap PCBA factory" or "electronic mouse trap PCBA manufacturer" to find relevant factory information. In the meantime, you can follow the factory’s website, social media accounts, etc. for more detailed information.


Industry exhibitions: Participate in industry exhibitions related to electronic mouse traps or PCBA, and you can directly communicate face-to-face with representatives from multiple factories to learn about their products, technologies and services.


Industry associations and organizations: Contact associations or organizations in the electronic mouse trap or PCBA industry. They may provide member lists or recommend reliable factories.


Industry consulting and assessment agencies: Consult professional industry assessment agencies or consulting companies. They can recommend suitable PCBA factories according to your needs.


Existing supplier recommendation: If you already have suppliers of other electronic products, you can ask them whether they know or recommend an electronic mouse trap PCBA factory.


When choosing a PCBA factory, be sure to consider the following factors:


Qualifications and reputation of the factory: Check the factory’s business license, certification status, etc. to ensure that it has legal business qualifications.


Technical strength and production capacity: Understand the technical level, equipment status, production scale, etc. of the factory to ensure that it can meet your needs.


Product quality and after-sales service: Inspect the factory's quality management system, product testing methods and after-sales service system to ensure reliable product quality and guaranteed after-sales service.


Price and delivery time: Negotiate a reasonable price and delivery time with the factory to ensure that the interests of both parties are protected.


Finally, it is recommended that you fully communicate with the factory before visiting the factory on site to clarify your needs and expectations so that you can better choose the appropriate electronic mouse trap PCBA factory.



UNIXPLORE provides one-stop turnkey contract electronic manufacturing service for your electronic mouse trap PCBA project. Feel free to contact us for your board building. We can quote in 24 hours after we receive your Gerber file and BOM list.


Electronic Mouse Trap PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter Capability
Layers 1-40 layers
Assembly Type Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size 0201(01005 Metric)
Maximum Component Size 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width 0.10 mm (4 mil)
Minimum Trace Clearance 0.10 mm (4 mil)
Minimum Drill Size 0.15 mm (6 mil)
Maximum Board Size 18 in x 24 in (457 mm x 610 mm)
Board Thickness 0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type Leaded or Lead-Free
Copper Thickness 0.5OZ – 5 OZ
Assembly Process Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Electronic Mouse Trap PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance

PCBA Production Procedure

  • Electronic Mouse Trap PCBA

    1. Automatic solderpaste printing

  • Electronic Mouse Trap PCBA

    2. solderpaste printing done

  • Electronic Mouse Trap PCBA

    3. SMT pick and place

  • Electronic Mouse Trap PCBA

    4. SMT pick and place done

  • Electronic Mouse Trap PCBA

    5. ready for reflow soldering

  • Electronic Mouse Trap PCBA

    6. reflow soldering done

  • Electronic Mouse Trap PCBA

    7. ready for AOI

  • Electronic Mouse Trap PCBA

    8. AOI inspection process

  • Electronic Mouse Trap PCBA

    9. THT component placement

  • Electronic Mouse Trap PCBA

    10. wave soldering process

  • Electronic Mouse Trap PCBA

    11. THT assembly done

  • Electronic Mouse Trap PCBA

    12. AOI Inspection for THT assembly

  • Electronic Mouse Trap PCBA

    13. IC programming

  • Electronic Mouse Trap PCBA

    14. function test

  • Electronic Mouse Trap PCBA

    15. QC Check and Repair

  • Electronic Mouse Trap PCBA

    16. PCBA conformal coating Process

  • Electronic Mouse Trap PCBA

    17. ESD packing

  • Electronic Mouse Trap PCBA

    18. Ready for Shipping


Packaging

For PCBA

Electronic Mouse Trap PCBA
Electronic Mouse Trap PCBA
For Finished Product

Electronic Mouse Trap PCBA
Electronic Mouse Trap PCBA
