Floor Scrubber PCBA

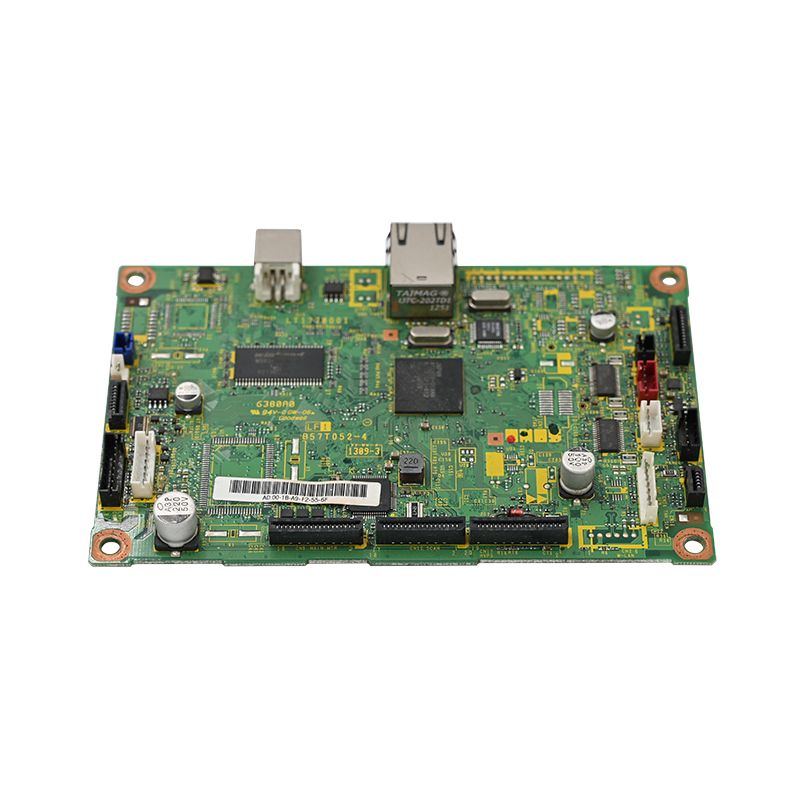

  • Floor Scrubber PCBAFloor Scrubber PCBA

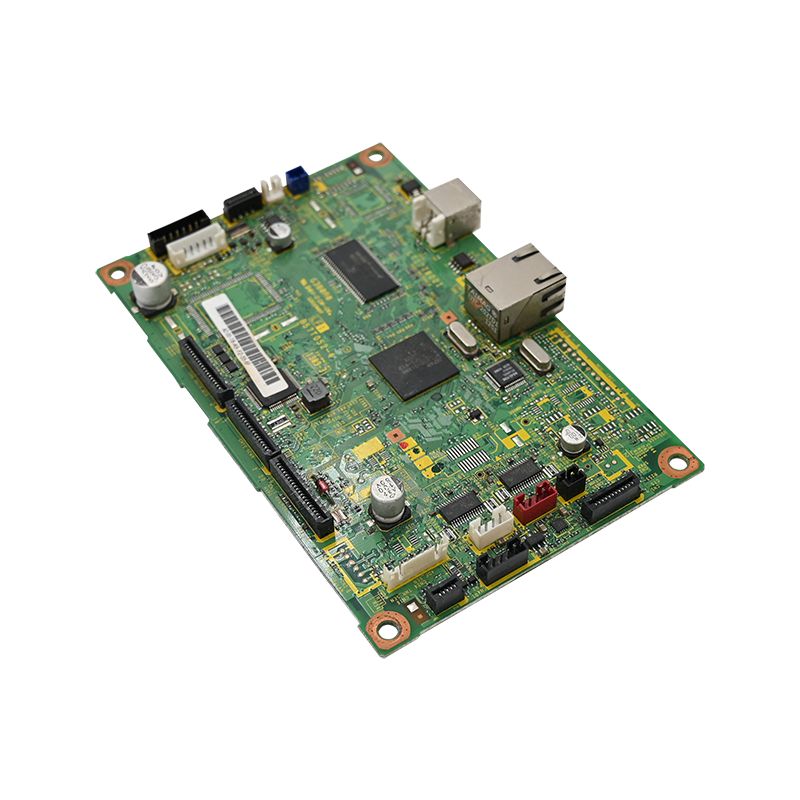

  • Floor Scrubber PCBAFloor Scrubber PCBA

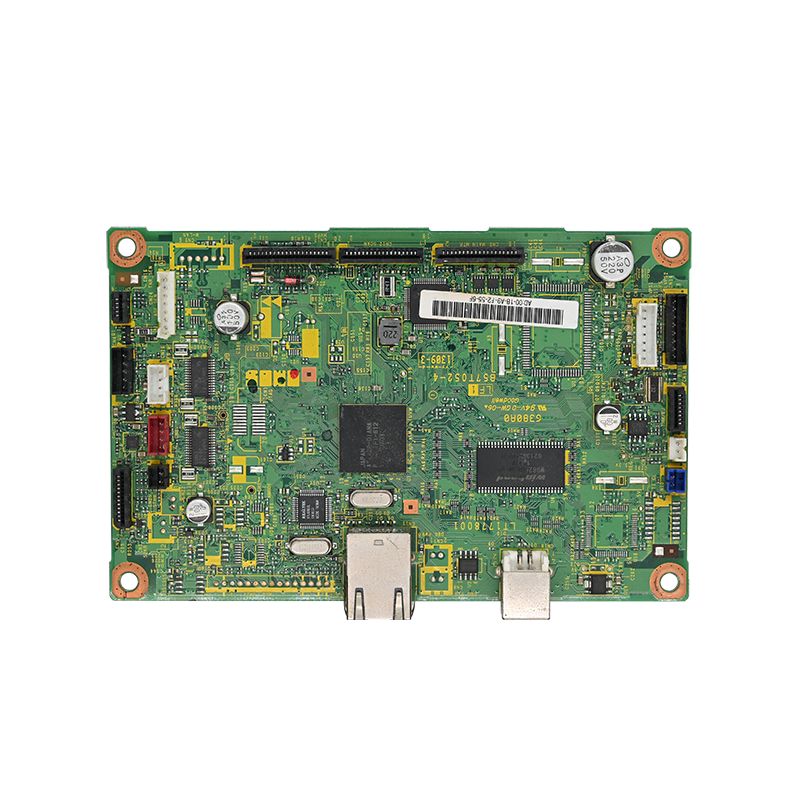

  • Floor Scrubber PCBAFloor Scrubber PCBA

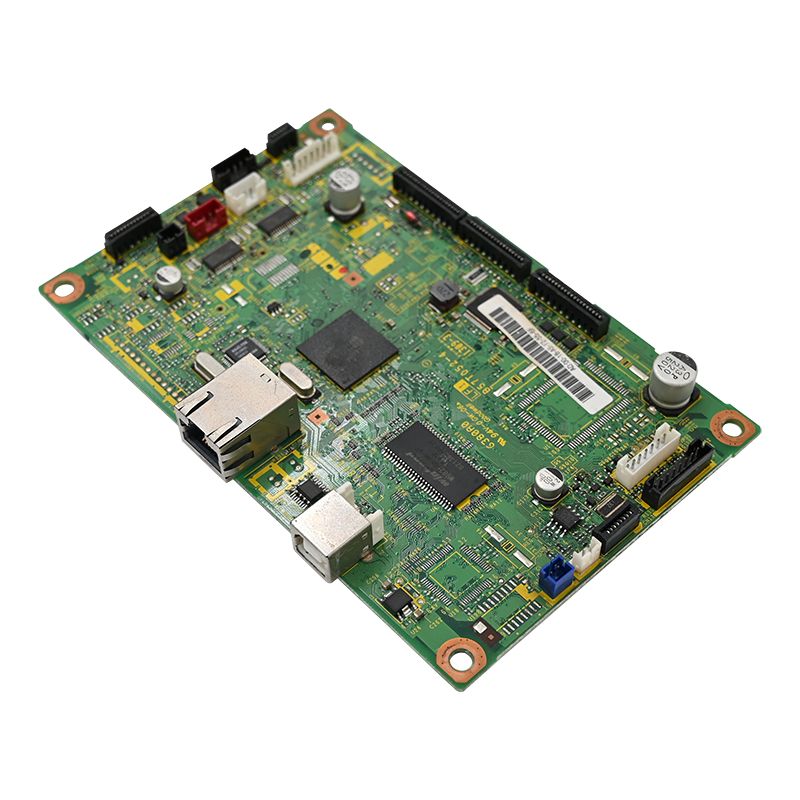

  • Floor Scrubber PCBAFloor Scrubber PCBA

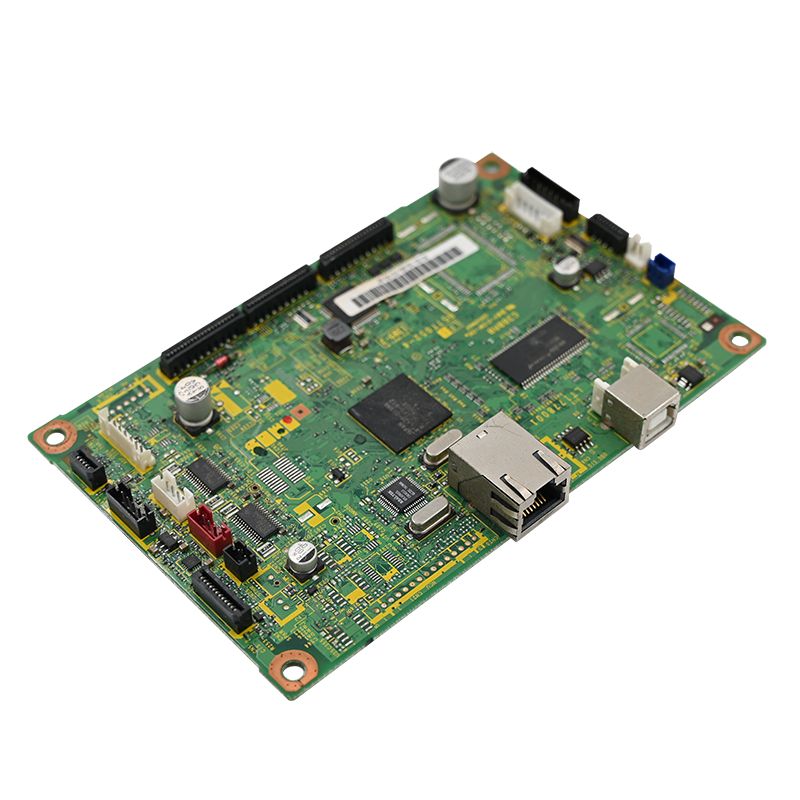

  • Floor Scrubber PCBAFloor Scrubber PCBA

Floor Scrubber PCBA

Since 2008, Unixplore Electronics has been dedicated to designing and producing top-notch floor scrubber PCBA in China. Our products meet quality standards of ISO9001:2015 and PCB assembly standard IPC-610E.

Send Inquiry

Product Description


What is the difference between vacuum cleaner PCBA and floor scrubber PCBA?

The following is the introduction of high quality floor scrubber PCBA, hoping to help you better understand floor scrubber PCBA.
Welcome new and old customers to continue to cooperate with Unixplore Electronics to create a better future!
Floor scrubber and vacuum cleaner are two different cleaning tools. The main difference between them is function, cleaning effect, and scope of application.

Different functions: The floor scrubber is mainly used to clean the ground. It can combine water and detergent to quickly separate the dirt from the ground by brushing so as to clean the ground. The vacuum cleaner is mainly used to absorb small garbage such as dust, debris, and hair. It can rotate at a high -speed motor to form a vacuum in the sealed cabin to generate a strong pressure difference from outside of sealed cabin, thereby generating high -speed airflow to form a strong suction force.
Different scope of application: The ground washing machine is suitable for large -scale ground cleaning, especially the ground that needs to be cleaned frequently. The vacuum cleaner is suitable for cleaning of various grounds, including carpets, wooden floors, tiles, etc. At the same time, it can also clean the surface and space in the car.
Different cleaning effects: The cleaning effect of the grounding machine is better. It can completely clean the ground, remove stains and dirt, and make the ground cleaner. The vacuum cleaner can remove small garbage and dust, but it cannot clean the ground like a floor scrubber.
Unixplore provides one-stop turnkey service for your EMS project. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!

Floor Scrubber PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter Capability
Layers 1-40 layers
Assembly Type Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size 0201(01005 Metric)
Maximum Component Size 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width 0.10 mm (4 mil)
Minimum Trace Clearance 0.10 mm (4 mil)
Minimum Drill Size 0.15 mm (6 mil)
Maximum Board Size 18 in x 24 in (457 mm x 610 mm)
Board Thickness 0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type Leaded or Lead-Free
Copper Thickness 0.5OZ – 5 OZ
Assembly Process Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Floor Scrubber PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance

PCBA Production Procedure

  • Floor Scrubber PCBA

    1. Automatic solderpaste printing

  • Floor Scrubber PCBA

    2. solderpaste printing done

  • Floor Scrubber PCBA

    3. SMT pick and place

  • Floor Scrubber PCBA

    4. SMT pick and place done

  • Floor Scrubber PCBA

    5. ready for reflow soldering

  • Floor Scrubber PCBA

    6. reflow soldering done

  • Floor Scrubber PCBA

    7. ready for AOI

  • Floor Scrubber PCBA

    8. AOI inspection process

  • Floor Scrubber PCBA

    9. THT component placement

  • Floor Scrubber PCBA

    10. wave soldering process

  • Floor Scrubber PCBA

    11. THT assembly done

  • Floor Scrubber PCBA

    12. AOI Inspection for THT assembly

  • Floor Scrubber PCBA

    13. IC programming

  • Floor Scrubber PCBA

    14. function test

  • Floor Scrubber PCBA

    15. QC Check and Repair

  • Floor Scrubber PCBA

    16. PCBA conformal coating Process

  • Floor Scrubber PCBA

    17. ESD packing

  • Floor Scrubber PCBA

    18. Ready for Shipping


Packaging

For PCBA

Floor Scrubber PCBA
Floor Scrubber PCBA
For Finished Product

Floor Scrubber PCBA
Floor Scrubber PCBA

Hot Tags: Floor Scrubber PCBA, China, Manufacturers, Suppliers, Factory, Customized, Cheap, Quality, Advanced, CE, 1 Year Warranty, Price
