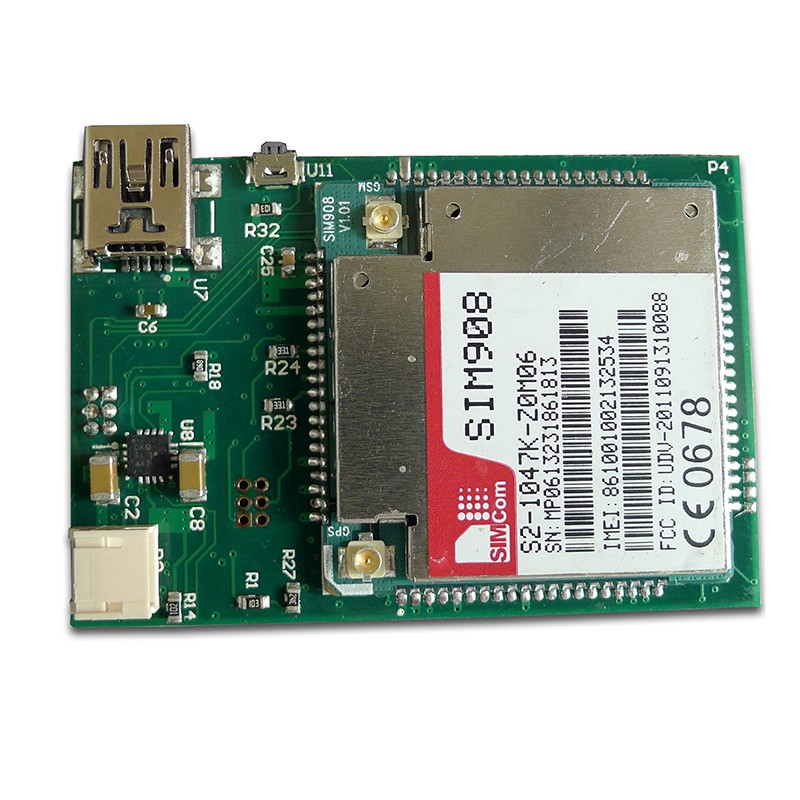

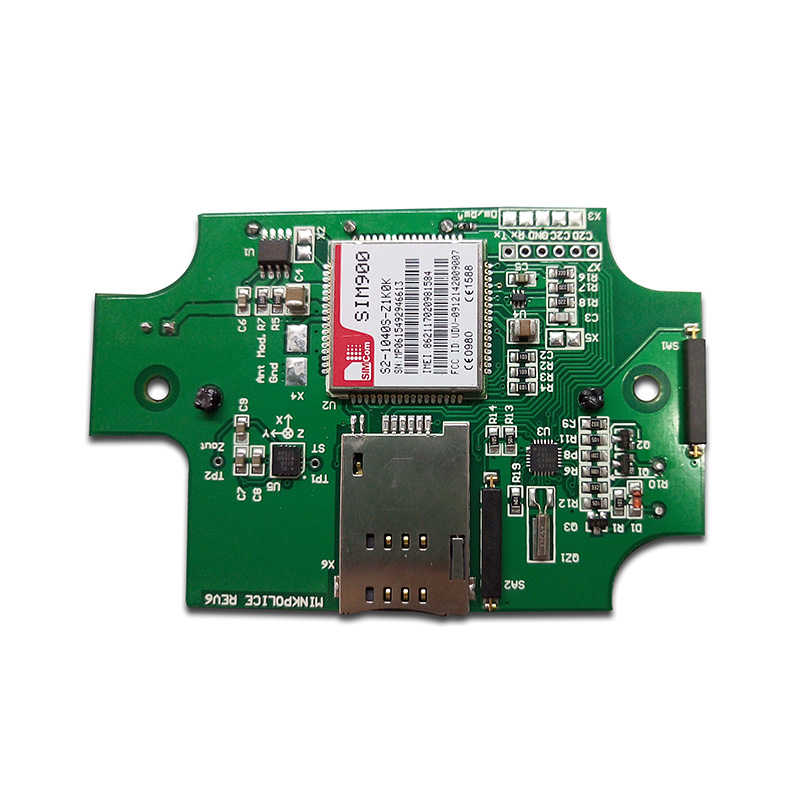

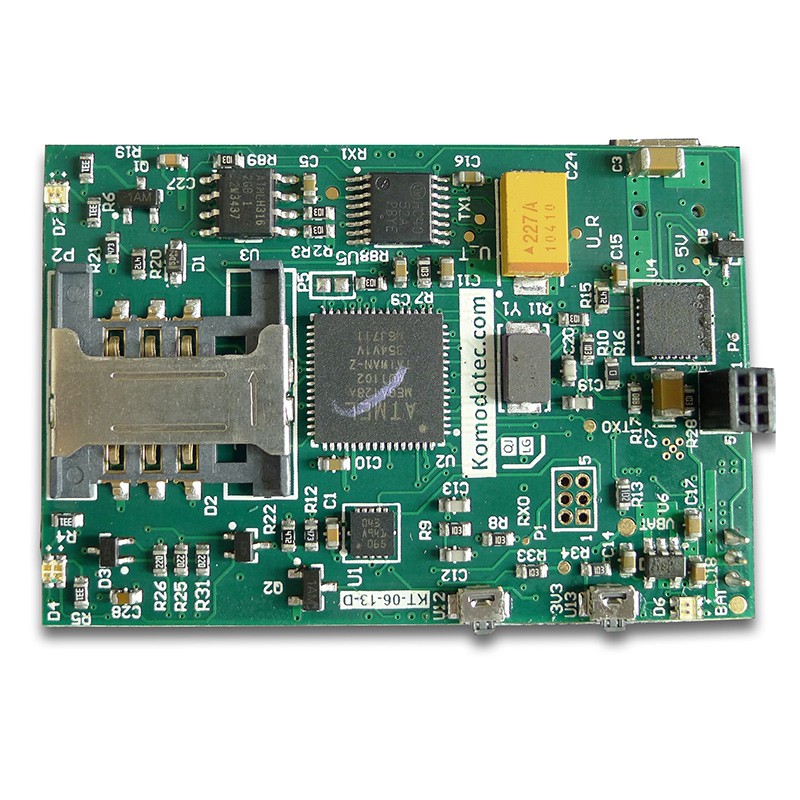

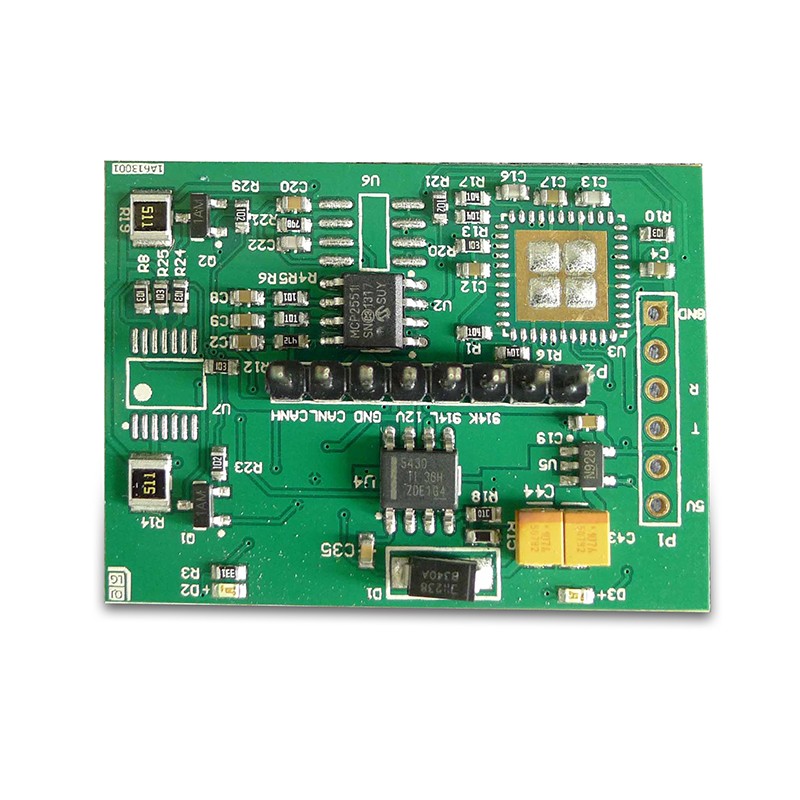

Robot PCBA

Product Description

How to find a good plant for your industrial robot PCBA?

Unixplore Electronics is proud to offer our customers high-quality Industrial robot PCBA. Our aim is to ensure that our customers are well-informed about the functions and features of our products and that they are satisfied with our services. We welcome both new and existing customers to partner with us to create a brighter future together. Industrial robot PCBA control board refers to an electronic board or circuit board used in a robot system to control and drive robot motion, operation, and interaction. It is a key component for achieving intelligent and autonomous robots. Its main function is to receive instructions from computers, plan the robot's motion according to the instructions, control the robot's executing mechanism to complete a series of actions, and achieve human-machine interaction functions. Unixplore provides one-stop turnkey service for your project. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber filet and BOM list!t

What is the difference between industrial robot and civil robot?

The difference between industrial robots and civil robots is as follows:

Different application scenarios. Industrial robots are designed for industrial fields, which can handle frequent repeated tasks, such as welding, assembly, etc.; Civil robots pay more attention to intelligent perception, mainly focus on intelligent services, and implement environmental regulation and family butler functions through voice control.
Functional differences. Industrial robots have high accuracy, power, efficiency, etc., and have more complex motion control to achieve precise screwing and other operations. Civil robots pay more attention to intelligent perception, mainly focus on smart services, and achieve environmental regulation and other functions through voice control.
Safety differences. Industrial robots have high security, with sensors, control chips and other devices, which are safe and reliable; civil robots are affected by environmental factors such as environmental factors and low safety.

Robot PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter	Capability
Layers	1-40 layers
Assembly Type	Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size	0201(01005 Metric)
Maximum Component Size	2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types	BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch	0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width	0.10 mm (4 mil)
Minimum Trace Clearance	0.10 mm (4 mil)
Minimum Drill Size	0.15 mm (6 mil)
Maximum Board Size	18 in x 24 in (457 mm x 610 mm)
Board Thickness	0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material	CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish	OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type	Leaded or Lead-Free
Copper Thickness	0.5OZ – 5 OZ
Assembly Process	Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods	Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House	Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time	Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards	ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Robot PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance

PCBA Production Procedure
