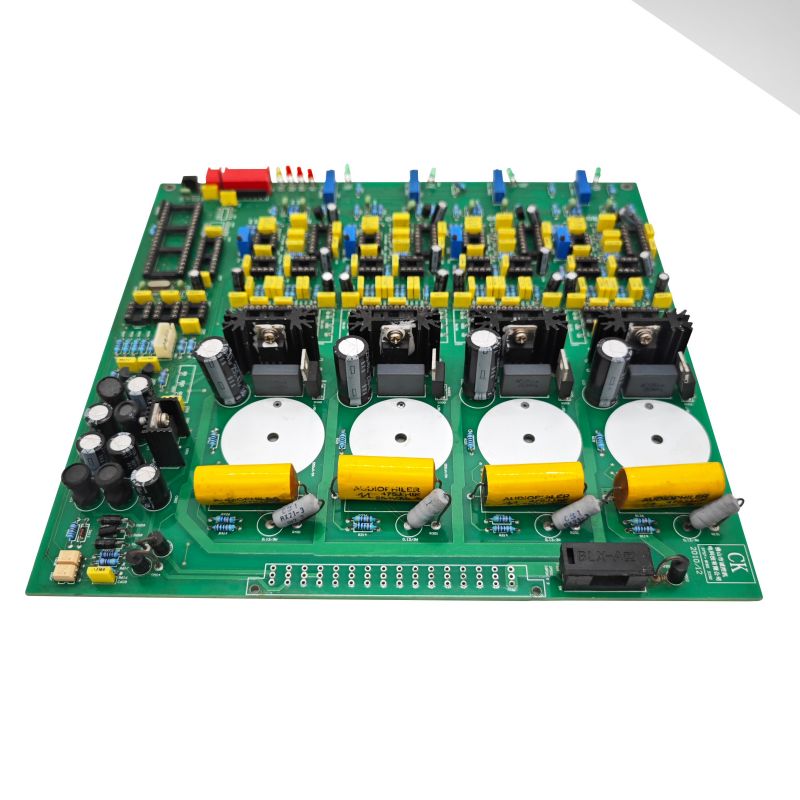

DC-DC Converter PCBA
  • DC-DC Converter PCBADC-DC Converter PCBA
  • DC-DC Converter PCBADC-DC Converter PCBA
  • DC-DC Converter PCBADC-DC Converter PCBA

DC-DC Converter PCBA

Unixplore Electronics specializes in one-stop turnkey manufacture and supply for DC-DC Converter PCBA in China since 2008 with certification of ISO9001:2015 and PCB assembly standard IPC-610E,which is widely used in various industrial control equipments and automation systems.


Send Inquiry

Product Description

How to choose a good DC-DC Converter PCBA supplier?

Unixplore Electronics is proud to offer you DC-DC Converter PCBA. Our goal is to ensure that our customers are fully aware of our products and their functionality and features. We sincerely invite new and old customers to cooperate with us and move towards a prosperous future together.

When choosing a DC-DC converter PCBA supplier, there are several factors you should consider before making a decision. Here are some of the key things to keep in mind:

Quality: Look for a supplier that produces high-quality parts. Check to see if they have any relevant certifications to ensure that their products meet industry standards.

Range of products: Choose a supplier who has a wide range of DC-DC converter PCBAs to choose from. This will ensure that you can find a product that meets your specific needs.

Reputation: Look for a supplier with a good reputation in the industry. Check reviews and testimonials from previous customers to gauge their reliability and quality of service.

Price: Compare the pricing of different suppliers and make sure you are getting the best value for your money. Be wary of extremely low prices that seem too good to be true, as these could indicate poor quality components.

Technical support: Choose a supplier that provides good technical support to help you with any questions or problems that may arise during the purchasing process or during usage.

By taking these factors into consideration, you can find a reliable and competent DC-DC converter PCBA supplier that meets your needs and requirements.

Unixplore provides one-stop TURN-KEY service for your EMS project. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!

DC-DC Converter PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter Capability
Layers 1-40 layers
Assembly Type Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size 0201(01005 Metric)
Maximum Component Size 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width 0.10 mm (4 mil)
Minimum Trace Clearance 0.10 mm (4 mil)
Minimum Drill Size 0.15 mm (6 mil)
Maximum Board Size 18 in x 24 in (457 mm x 610 mm)
Board Thickness 0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type Leaded or Lead-Free
Copper Thickness 0.5OZ – 5 OZ
Assembly Process Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● DC-DC Converter PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance

PCBA Production Procedure

  • DC-DC Converter PCBA

    1. Automatic solderpaste printing

  • DC-DC Converter PCBA

    2. solderpaste printing done

  • DC-DC Converter PCBA

    3. SMT pick and place

  • DC-DC Converter PCBA

    4. SMT pick and place done

  • DC-DC Converter PCBA

    5. ready for reflow soldering

  • DC-DC Converter PCBA

    6. reflow soldering done

  • DC-DC Converter PCBA

    7. ready for AOI

  • DC-DC Converter PCBA

    8. AOI inspection process

  • DC-DC Converter PCBA

    9. THT component placement

  • DC-DC Converter PCBA

    10. wave soldering process

  • DC-DC Converter PCBA

    11. THT assembly done

  • DC-DC Converter PCBA

    12. AOI Inspection for THT assembly

  • DC-DC Converter PCBA

    13. IC programming

  • DC-DC Converter PCBA

    14. function test

  • DC-DC Converter PCBA

    15. QC Check and Repair

  • DC-DC Converter PCBA

    16. PCBA conformal coating Process

  • DC-DC Converter PCBA

    17. ESD packing

  • DC-DC Converter PCBA

    18. Ready for Shipping



DC-DC Converter PCBA
DC-DC Converter PCBA
For Finished Product

DC-DC Converter PCBA
DC-DC Converter PCBA
