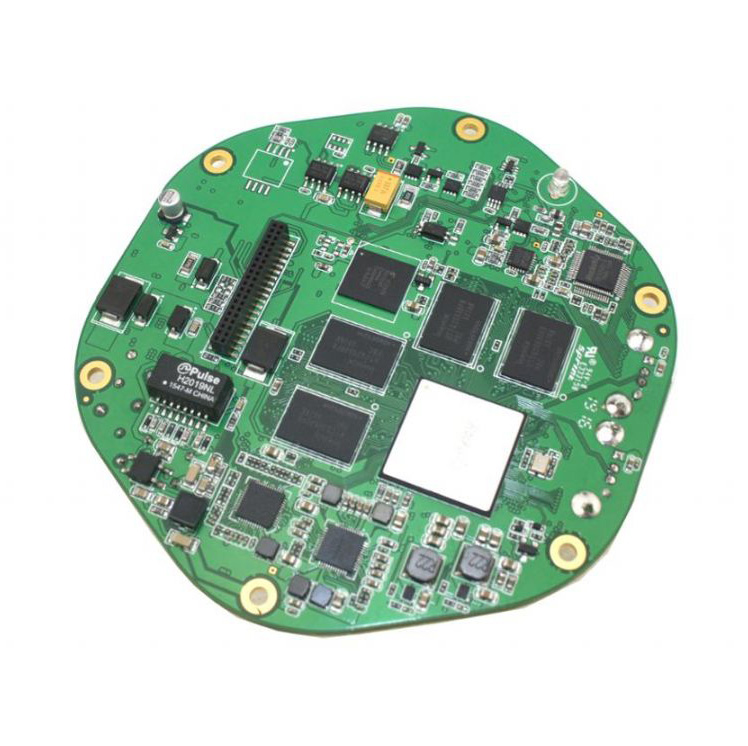

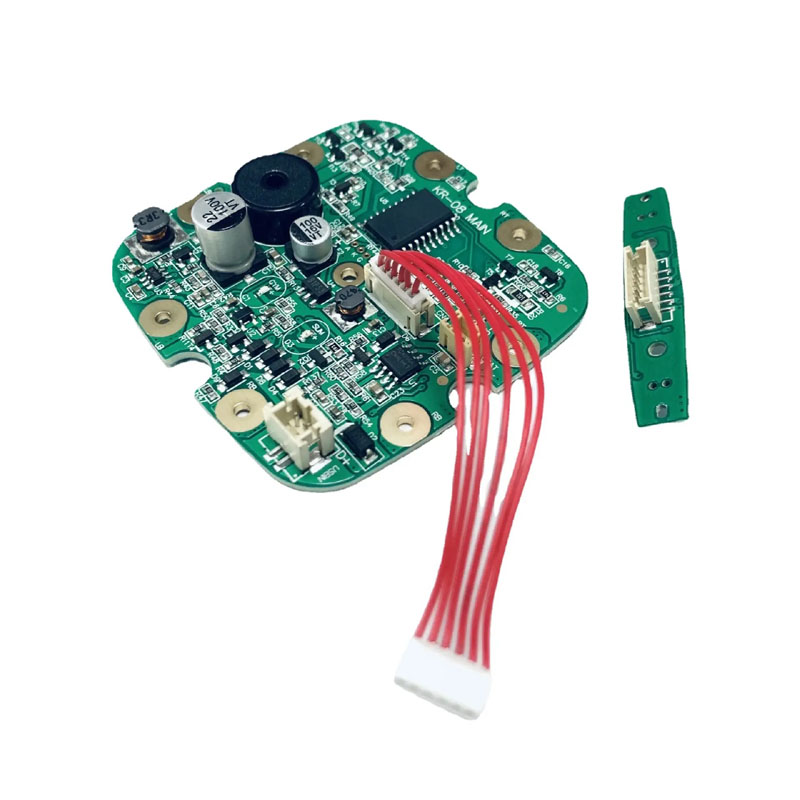

Water flosser PCBA

Environmental Demands and Classifications

A water flosser operates in extreme bathroom environments characterized by direct water splashes, high ambient steam, and aggressive chemical exposures, such as toothpaste and mouthwash residues. Standard electronics rapidly succumb to corrosion, parasitic leakage currents, and electrical short circuits in these conditions.

Our engineered PCBA solutions are specifically built to withstand these severe environmental stressors, guaranteeing a reliable 3-year operating product lifecycle.

Mitigation of Substrate Risks

Required Certifications Built-In: All water flosser PCBA fabrications comply with globally mandated appliance regulations: IEC 60335-1 (Household Appliance Safety), UL 60730-1 (Automatic Electrical Controls), IPX4/IPX7 Minimum Ingress Protection, and REACH / RoHS chemical resistance standards for wet environments.

Base Laminate Selection and Copper Architecture

The selection of the base laminate defines long-term PCBA integrity under continuous moisture exposure. Standard FR-4 readily absorbs water vapor through raw cut board edges and plated via barrels, leading to catastrophic Conductive Anodic Filament (CAF) short circuits within 12 months.

Laminate Grades Compared

• Standard FR-4: Water Absorption 0.10%–0.20%, TG 130°C–140°C. Suitable for dry areas only. Avoid for water flosser applications as it triggers rapid CAF failure.

• High TG FR-4 [Our Core Selection]: Water Absorption 0.08%–0.12%, TG 170°C. Ideal choice for humid, intermittent moisture profiles.

• Halogen-Free High TG FR-4 [Recommended]: Water Absorption 0.05%–0.08%, TG 150°C. Eco-friendly build with excellent moisture resilience.

• Polyimide: Water Absorption 0.02%–0.04%, TG 250°C. Premium option for permanent wet exposure or rigid-flex zones.

Copper Weight and Plating Specifications

• Outer Layer Copper: Minimum 1 oz (35 µm) to provide an optimized anti-corrosion margin.

• Inner Layer Copper: Minimum 0.5 oz (18 µm) to secure signal integrity against internal motor interference.

• Plated Through-Holes (PTH): Minimum 25 µm copper plating thickness inside the barrels to form a hermetic, airtight moisture seal.

• Surface Finish: Strictly utilizes ENIG (Electroless Nickel Immersion Gold). We completely ban HASL (Hot Air Solder Leveling) for water flosser PCBAs because the exposed tin-lead alloy corrodes in mouthwash vapors within 90 days.

Layer Stack-Up and Mechanical Design

Depending on your product architecture, we deliver tailored multi-layer configurations to combat high-frequency pump noise (EMI) and structural spacing limits:

• Basic Tier (Button and Pump Only): Formulated on an optimized 2-Layer High TG FR-4 substrate, balancing cost-efficiency with high-grade industrial moisture defense.

• Smart/Premium Tier (Pressure Sensor, LCD/LED Display, Bluetooth, USB-C Fast Charging): Engineered with a 4-Layer Stackup. The dual internal solid ground planes shield sensitive MCU signals from pump EMF and act as a definitive physical block against internal moisture diffusion.

Thickness and Rigid-Flex Integration

• 1.0 mm Thickness: Designed for compact, ergonomic handheld handles requiring structural agility and drop resistance.

• 1.6 mm Thickness: Designed for countertop base stations; offers maximum rigidity and the lowest native water vapor diffusion rate.

• Rigid-Flex PCB Specialization: For ultra-premium compact handles, we support rigid-flex construction where the battery connects via a flexible polyimide tail protected with a coverlay. This eliminates failure-prone wire harnesses and significantly upgrades the overall assembly IPX rating.

Dual-Defense: Conformal Coating and Component Sealing

Robotic Selective Conformal Coating

Even the best substrate requires an airtight surface coat to survive everyday bathroom humidity.

• Precision Multi-Axis Automated Spraying: Our automated robotic lines apply a uniform protective layer while precisely masking areas that must remain uncoated, such as Type-C ports, battery contacts, and buzzer ports.

• UV Inspection with 0.1% Fluorescing Dye: A specialized UV indicator dye is blended into the coating, enabling high-speed optical automated scanners to verify a uniform minimum thickness of 25 µm without pinhole gaps.

Component-Level Interface Sealing Specs

1. USB-C Port: Fitted with a silicone compression gasket and rubber cap, achieving IPX4 sealing when the port is closed.

2. Tactile Switches: Over-molded with a robust rubber boot over the dome to hit IPX5 localized ingress defense.

3. Pump Connector: Fully enclosed via epoxy potting compound fill for complete IPX7 temporary submersibility protection.

4. Charging Contact Pins (Pogo Pins): Strictly specified with 30 µ inch minimum heavy gold-plating (Hard Gold) and O-ring seals. Standard nickel-plated pins corrode and fail within 6 months of daily charging in a wet bathroom. Our heavy gold tabs withstand 20,000 wet connection cycles without contact resistance degradation.

Strict Production Quality Testing Flow

Every manufactured lot of Unixplore water flosser PCBAs must pass a series of intensive moisture-simulation quality checks before dispatch:

1. Humidity Environmental Soak: 48 hours at 40°C and 93% RH (non-condensing). Pass criteria: No visible oxidation; Insulation Resistance (IR > 10 MΩ) between any two networks.

2. IPX4 Water Spray Test: 10 minutes of continuous oscillating multi-angle tube spray to verify zero fluid ingress beneath the coating layers.

3. High-Voltage Insulation Check: Application of 500V DC between primary battery terminals and the ground plane to confirm IR > 50 MΩ post-humidity soak.

4. Post-Stress Functional Verification: Full-cycle pump actuation under load. Zero micro-controller (MCU) resets, timing stutters, or false starts are tolerated.

Engineering FAQ and Technical Briefs

Can I use standard FR-4 for a water flosser PCBA if I apply a thick layer of conformal coating to reduce costs?

A: Absolutely not. This is a common manufacturing trap that leads to high field-return rates. Conformal coating cannot seal three critical pathways:

1. Uncoated Via Barrels: Water vapor travels laterally into the inner glass fiber weave of standard FR-4 via capillary action, reaching component pads from underneath. After repeated humidity cycles, white conductive salt residues form, bridging components.

2. Routed Edges (Edge Wicking): Board routing leaves raw laminate edges exposed. Surface tension causes coatings to pull back from sharp corners, leaving 0.5 mm micro-gaps where bathroom steam enters.

3. Component Undersides: Coating covers the outer shell but cannot perfectly penetrate beneath low-profile SMT capacitors and resistors. Trapped moisture hydrolyzes flux residues, creating ionic contamination that causes spontaneous, unprompted pump startups.

   Our Solution: High TG FR-4 with ENIG and edge-bead epoxy dispensing provides three-layer protection that easily survives over 3 years in 95% RH.

Your Turnkey EMS Partner: Unixplore Electronics

When choosing a water flosser PCBA supplier, long-term engineering reliability and strict quality control are critical. Unixplore Electronics provides the advanced capabilities and industrial infrastructure to bring your design to life seamlessly:

l One-Stop Turnkey EMS Services: We manage your entire product lifecycle, from schematic optimization and component DFM review to global parts procurement, SMT and DIP assembly, firmware programming, functional testing (FCT), automated conformal coating, final box building, and specialized packaging.

l Certified Quality Standards: Our entire manufacturing ecosystem is certified to ISO 9001:2015, and all electronic assembly practices strictly adhere to the international IPC-A-610E standard, eliminating the risk of cold solder joints or component misalignment.

l Advanced In-House Production Power: We operate an anti-static manufacturing plant spanning over 3,000 square meters, backed by 20 expert R&D and process engineers. Our facility features:

1. 6 High-Speed Yamaha SMT Production Lines

2. 4 Precision DIP Assembly Lines with Wave Soldering

3. 2 Specialized Burn-In / Aging Test Rooms

4. 2 High and Low Temperature Alternating Humid Heat Test Chambers, ensuring all environmental validation tests are done comprehensively in-house.

l Flexible Order Scaling (No MOQ): Our agile production frameworks are optimized to support your growth. We maintain a strict No Minimum Order Quantity (No MOQ) policy, enabling us to handle rapid prototype testing, small pilot runs, and large mass-production volumes with the same elite precision.

l Global Reach and Communication: Our international technical sales team is fully fluent in English, French, Russian, and Arabic. With deep experience serving high-end markets, including Western Europe (35%), North America (20%), and Oceania (20%), we fully understand personal care electronic safety compliance standards globally.

Contact Us Today: Send your customized water flosser PCB design, BOM list, or DFM inquiries to our engineering desk. Our team will provide a comprehensive manufacturability analysis and an optimized turnkey quotation within 24 hours.
