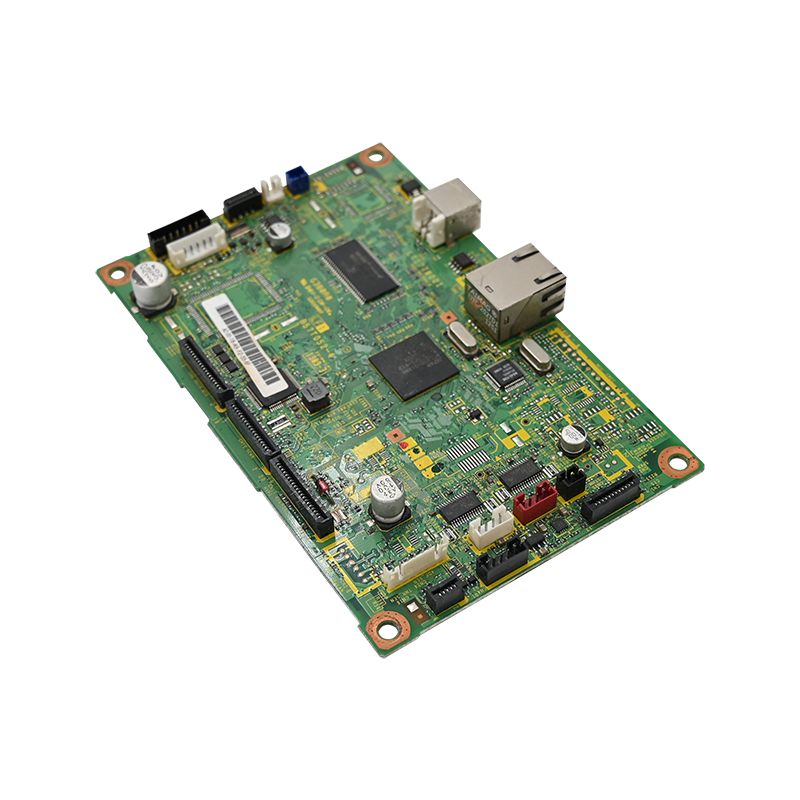

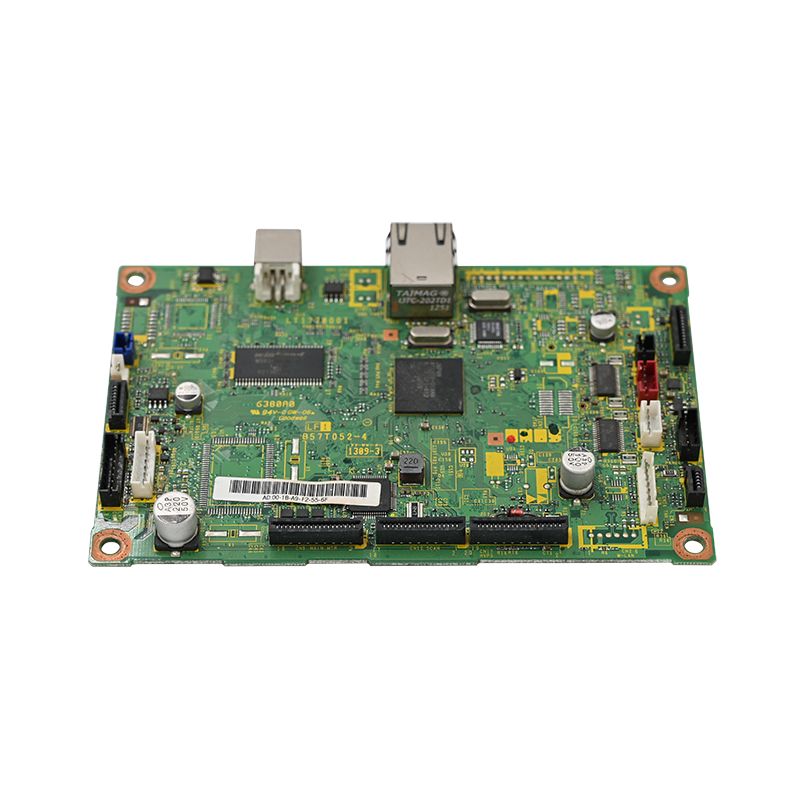

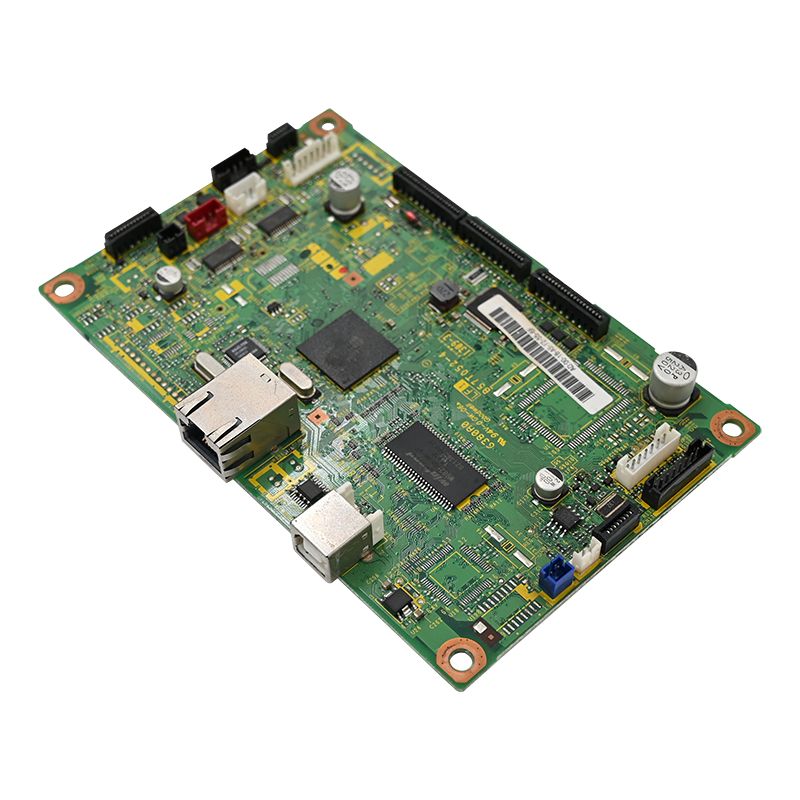

Obd Scanner PCBA

As vehicles become increasingly computerized, the demand for high-precision, durable OBD2 (On-Board Diagnostics) scanners continues to grow. At Unixplore Electronics, we provide a comprehensive OBD2 Scanner PCBA manufacturing service—from PCB layout and component sourcing to assembly, testing, and conformal coating.

With over a decade of experience in the automotive electronics sector, our OBD2 scanner PCBA solutions are engineered to withstand the harsh environments of automotive repair shops and engine bays.

Why Choose Unixplore for Your OBD2 Scanner PCBA?

• Automotive-Grade Quality: Our boards are built with components rated for -40°C to +105°C, ensuring operation under extreme hood temperatures.
• Turnkey Manufacturing: We offer one-stop service including SMT assembly, functional testing, and box building.
• Reliability Focus: Features include 4-layer PCB design for signal integrity, conformal coating for corrosion protection, and rigorous In-Circuit Testing (ICT).
• Certified Excellence: Our facility is ISO 9001:2015 certified and compliant with IPC-610E standards.

Core Specifications of Our OBD2 Scanner PCBA

Our professional OBD2 scanner boards are designed with non-negotiable parameters to ensure compatibility with 1996–current vehicles (both gasoline and diesel).

Recommended BOM & Component Sourcing

We utilize only premium components sourced from authorized distributors to guarantee longevity and performance.

• Transceivers: Automotive-grade CAN transceiver + ISO9141/KWP2000-compliant transceiver for robust bus communication.

• Protection: Transient voltage suppression diode array for load dump protection.

• Connectivity: 16-pin OBD2 male connector, gold-plated with a locking latch (prevents contact oxidation and ensures long-term reliability over frequent plug cycles).

• Voltage Regulator: Automotive-grade 5V/400mA low-dropout regulator ensures stable power supply.

Our Manufacturing Process: Quality Without Compromise

We follow a stringent manufacturing flow to minimize field failures and warranty returns.

1. PCB Layout & Signal Integrity

• Star Grounding: Analog and digital grounds are separated and joined only at a single point near the power supply to reduce noise.

• Impedance Control: CAN_H/CAN_L traces are parallel and matched in length (120Ω ±10% differential impedance).

• ESD Placement: Protection components are placed within 5mm of the OBD2 connector pins for optimal safety.

2. Assembly & Soldering

• Lead-Free Solder: Use of SAC305 solder for RoHS compliance.

• Through-Hole Connectors: Specified for the 16-pin OBD2 connector to prevent cracking after repeated plug cycles.

• Conformal Coating: Acrylic or silicone coating is applied to protect against humidity and chemical drips.

3. In-Circuit Testing (ICT) & Calibration

Every OBD2 scanner PCBA must pass a rigorous protocol before shipping:

• Continuity Test: Checks for shorts on all 16 pins.

• Handshake Test: Cycles through CAN, KWP, J1850 using a programmable vehicle simulator.

• Current Draw Check: Verified to be <70mA when idle (ignition off) to prevent draining the car battery.

Common Failure Modes & Our Prevention

Value-Added Services: Bluetooth/WiFi Integration

Adding wireless connectivity to OBD2 scanners often leads to EMC challenges. We have the engineering expertise to integrate Bluetooth/WiFi successfully while passing automotive EMC standards (e.g., CISPR 25).

Physical Isolation: Wireless section is isolated from CAN traces to minimize interference.
Separate Power: Dedicated voltage regulator for the wireless module to prevent noise coupling.
Ferrite Beads & Common-Mode Chokes: Used on power inputs and CAN lines to suppress emissions and ensure signal integrity.

About Unixplore Electronics

• Established in 2011, Unixplore Electronics Co., Ltd. is a leading provider of one-stop turnkey contract electronic manufacturing services.

• Factory Capacity: Over 3,000 sqm factory with 6 SMT lines and 4 DIP lines.

• Annual Output: Over 1,500,000 pieces of PCBAs and 150,000 sets of finished products.

• Global Reach: We export to North America, Europe, and Oceania.

Ready to launch your OBD2 scanner project?

• No Minimum Order Quantity (NO MOQ)
• Free technical consultation and DFM review
• Prototype shipment in as little as 72 hours

Don't let your automotive diagnostic products remain stuck at the blueprint stage. With over a decade of experience in automotive electronics PCBA manufacturing, Unixplore helps you rapidly transform your designs into high-quality, mass-production-ready products.
