Wireless relay interface PCBA
  • Wireless relay interface PCBAWireless relay interface PCBA
  • Wireless relay interface PCBAWireless relay interface PCBA

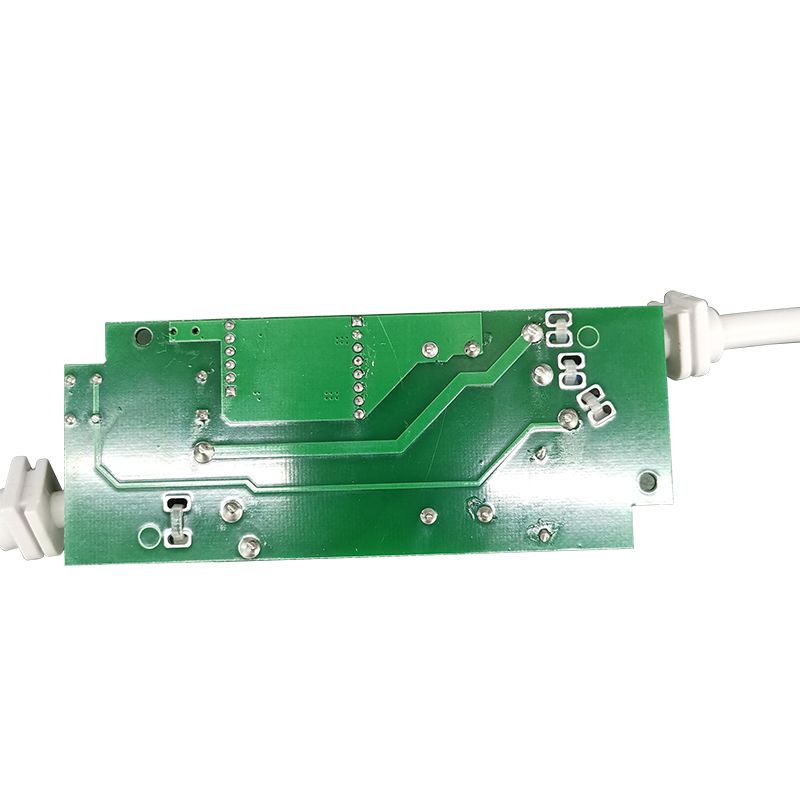

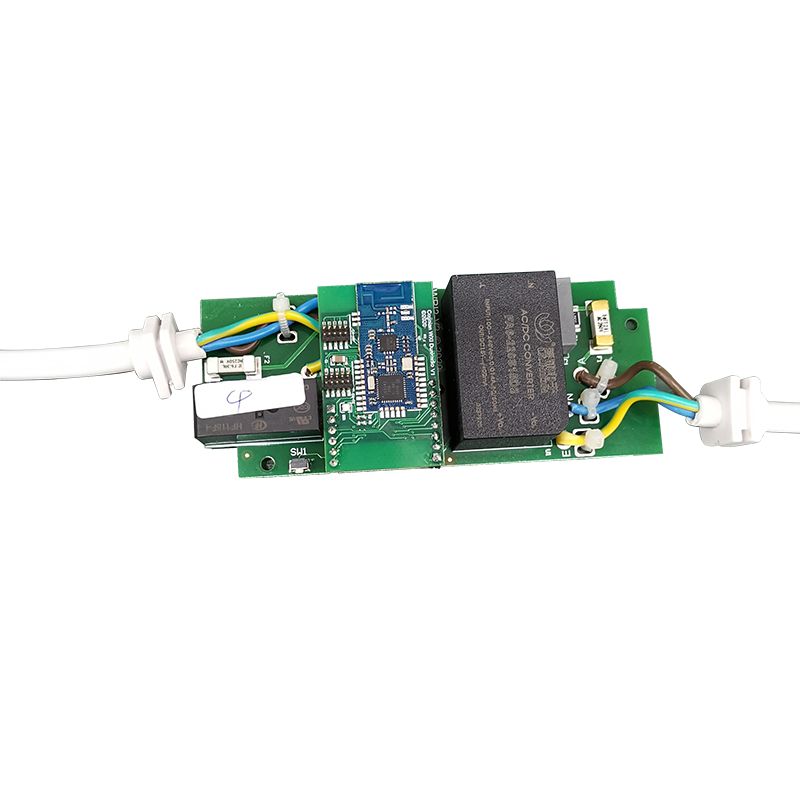

Wireless relay interface PCBA

Since 2008, Unixplore Electronics has been providing one-stop turnkey manufacture and supply services for high-quality Wireless relay interface PCBA in China. Our company is certified with ISO9001:2015 and adheres to the PCB assembly standard of IPC-610E.

Model:UE-139

Send Inquiry

Product Description


What is Wireless Relay Interface PCBA ?


We want to take this opportunity to introduce you to our high-quality wireless relay interface PCBA at Unixplore Electronics. Our primary objective is to make sure that our customers fully comprehend the capabilities and features of our products. We are always eager to partner with our existing and new customers to foster a better future.


Wireless Relay Interface PCBA (Printed Circuit Board Assembly) refers to a circuit board assembly product that integrates wireless relay interface functions. This kind of PCBA combines wireless communication technology (such as radio frequency communication, ZigBee, WiFi, Bluetooth, etc.) with relay control logic to realize wireless remote control of relay equipment.


The main components of Wireless Relay Interface PCBA usually include wireless communication modules, relay control modules, power management modules and related circuits and electronic components. The wireless communication module is responsible for receiving wireless signals from the remote transmitter and converting them into instructions that can be recognized by the relay control module. The relay control module controls the switching status of the relay based on these instructions to achieve remote control of circuits or equipment.


This kind of PCBA has wide applications in smart home, industrial automation, remote control and other fields. Through the wireless relay interface PCBA, users can easily remotely control and manage various electrical equipment, lighting, security systems, etc., improving the flexibility and convenience of the system.


When designing and manufacturing Wireless Relay Interface PCBA, factors such as the stability of wireless communication, transmission distance, anti-interference ability, and compatibility with other systems need to be considered. At the same time, it is also necessary to pay attention to the optimization of PCBA reliability, power consumption and cost to meet the needs of different application scenarios.


In general, Wireless Relay Interface PCBA is a key component to achieve wireless relay control, and Wireless Relay Interface PCBA application provides more convenient and efficient solutions for various application scenarios.


Unixplore provides one-stop turn-key service for your Electronic Manufacturing project. Feel free to contact us for your circuit board assembly building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!


Wireless Relay Interface PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and THT assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter Capability
Layers 1-40 layers
Assembly Type Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size 0201(01005 Metric)
Maximum Component Size 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width 0.10 mm (4 mil)
Minimum Trace Clearance 0.10 mm (4 mil)
Minimum Drill Size 0.15 mm (6 mil)
Maximum Board Size 18 in x 24 in (457 mm x 610 mm)
Board Thickness 0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type Leaded or Lead-Free
Copper Thickness 0.5OZ – 5 OZ
Assembly Process Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added Electronic Manufacturing Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Wireless Relay Interface PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance

PCBA Production Procedure

  • Wireless Relay Interface PCBA

    1. Automatic solderpaste printing

  • Wireless Relay Interface PCBA

    2. solderpaste printing done

  • Wireless Relay Interface PCBA

    3. SMT pick and place

  • Wireless Relay Interface PCBA

    4. SMT pick and place done

  • Wireless Relay Interface PCBA

    5. ready for reflow soldering

  • Wireless Relay Interface PCBA

    6. reflow soldering done

  • Wireless Relay Interface PCBA

    7. ready for AOI

  • Wireless Relay Interface PCBA

    8. AOI inspection process

  • Wireless Relay Interface PCBA

    9. THT component placement

  • Wireless Relay Interface PCBA

    10. wave soldering process

  • Wireless Relay Interface PCBA

    11. THT assembly done

  • Wireless Relay Interface PCBA

    12. AOI Inspection for THT assembly

  • Wireless Relay Interface PCBA

    13. IC programming

  • Wireless Relay Interface PCBA

    14. function test

  • Wireless Relay Interface PCBA

    15. QC Check and Repair

  • Wireless Relay Interface PCBA

    16. PCBA conformal coating Process

  • Wireless Relay Interface PCBA

    17. ESD packing

  • Wireless Relay Interface PCBA

    18. Ready for Shipping


Packaging

For PCBA

Wireless Relay Interface PCBA
Wireless Relay Interface PCBA
For Finished Product

Wireless Relay Interface PCBA
Wireless Relay Interface PCBA
