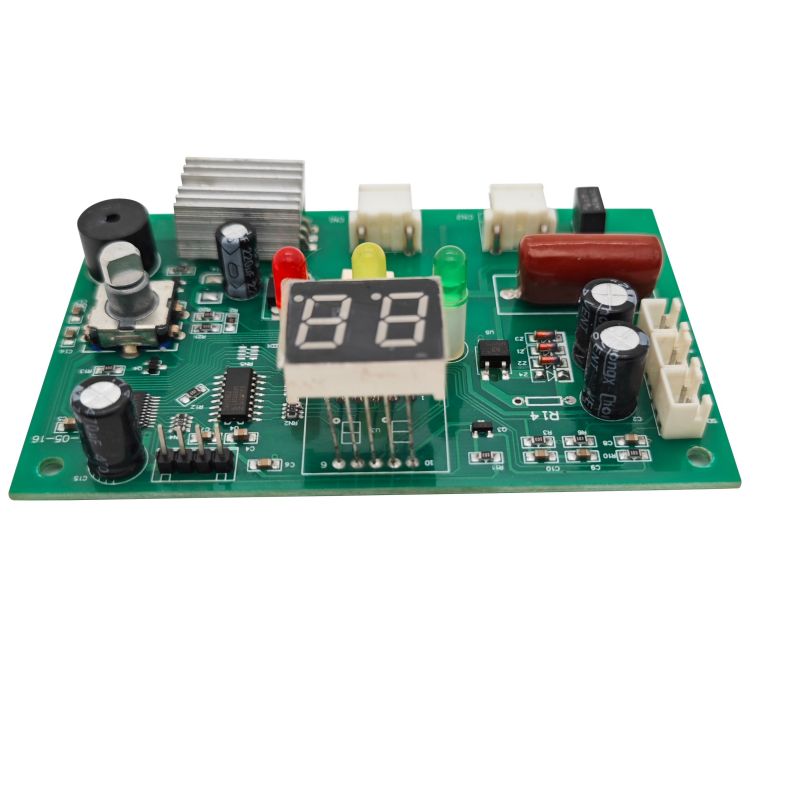

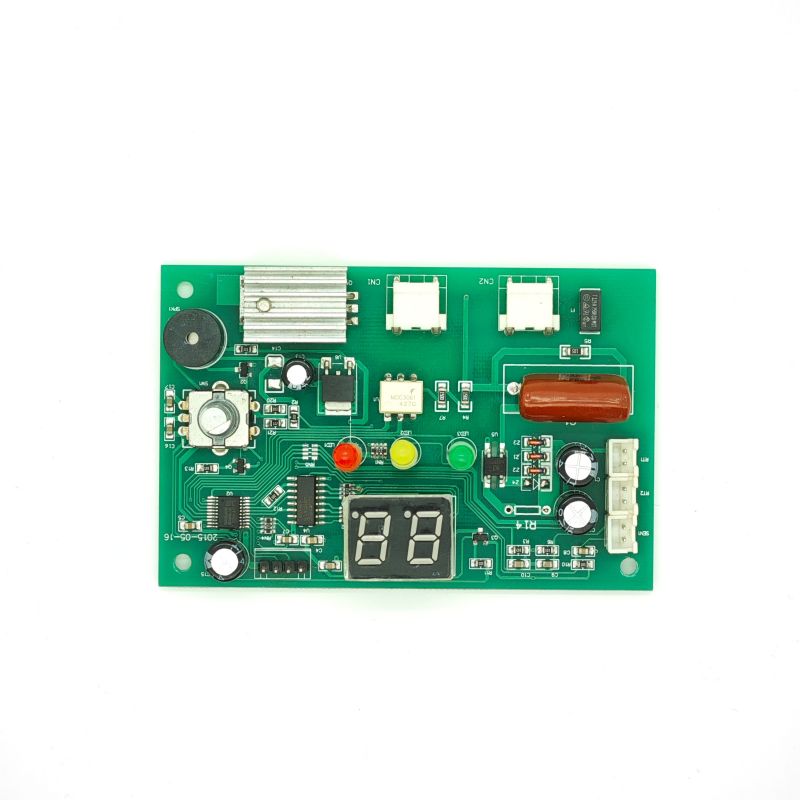

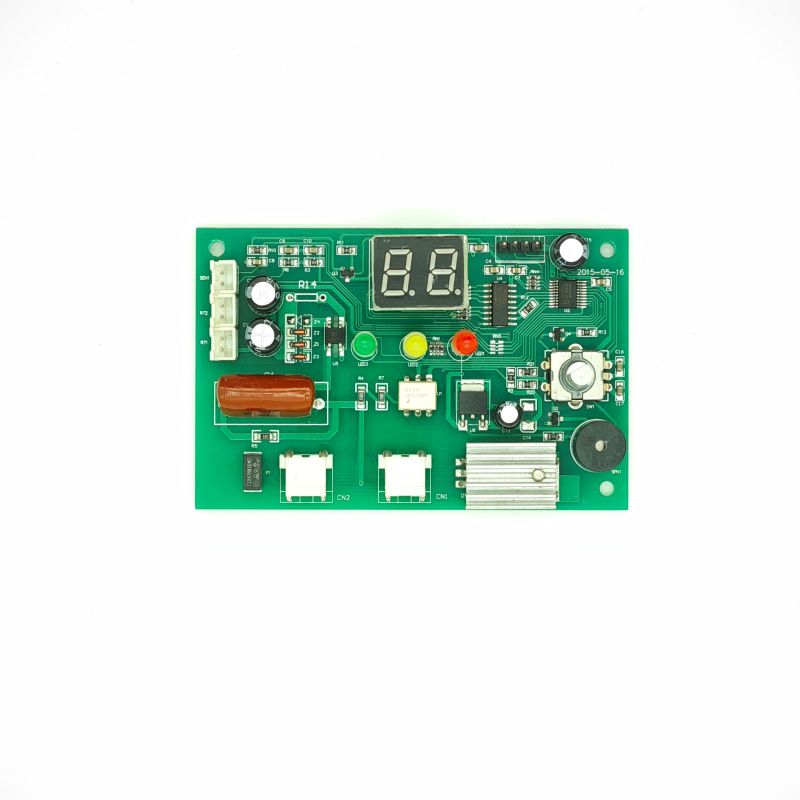

Alarm System PCBA

Product Description

What is Smart Home Alarm System PCBA project?

We would like to take this opportunity to introduce you to the Alarm System PCBA from Unixplore Electronics. Our main goal is to ensure that our customers fully understand the functionality and features of our products. We are always eager to cooperate with existing and new customers to create a better future.

The PCBA (Printed Circuit Board Assembly) of the smart home alarm system is an important part of the smart home alarm system. PCBA fixes various electronic components (such as microcontrollers, sensors, GSM modules, etc.) to the printed circuit board through soldering and other processes to form a complete circuit board, thereby realizing various functions of the smart home alarm system.

In the smart home alarm system, the role of PCBA is crucial. It is responsible for connecting and controlling various components to ensure the normal operation of the system. For example, the microcontroller serves as the main control chip and communicates with other components through PCBA to achieve overall control of the alarm system. At the same time, sensors (such as active infrared sensors, ion smoke sensors, gas leak sensors, etc.) are also connected to the system through PCBA, responsible for real-time monitoring of the safety status of the home environment. When an abnormality occurs, the sensor will promptly transmit the signal to the microcontroller, and then the microcontroller will send the alarm information to the user's mobile phone through the GSM module.

In addition, the manufacturing process of PCBA also has an important impact on the performance and stability of smart home alarm systems. During the manufacturing process, it is necessary to strictly control the procurement, placement, welding and testing of components to ensure that the quality and performance of PCBA meet the requirements. Only in this way can the smart home alarm system be guaranteed to operate stably and reliably in actual use, providing effective protection for home security.

In general, the smart home alarm system PCBA is a key component to achieve system functions, and its quality and performance directly affect the stability and reliability of the system. Therefore, when designing and manufacturing smart home alarm systems, it is necessary to fully consider the design and manufacturing requirements of PCBA to ensure that the system can perform optimally

Unixplore provides one-stop Turn-Key service for your EMS project. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!

Alarm System PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter	Capability
Layers	1-40 layers
Assembly Type	Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size	0201(01005 Metric)
Maximum Component Size	2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types	BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch	0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width	0.10 mm (4 mil)
Minimum Trace Clearance	0.10 mm (4 mil)
Minimum Drill Size	0.15 mm (6 mil)
Maximum Board Size	18 in x 24 in (457 mm x 610 mm)
Board Thickness	0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material	CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish	OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type	Leaded or Lead-Free
Copper Thickness	0.5OZ – 5 OZ
Assembly Process	Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods	Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House	Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time	Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards	ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Alarm System PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance
