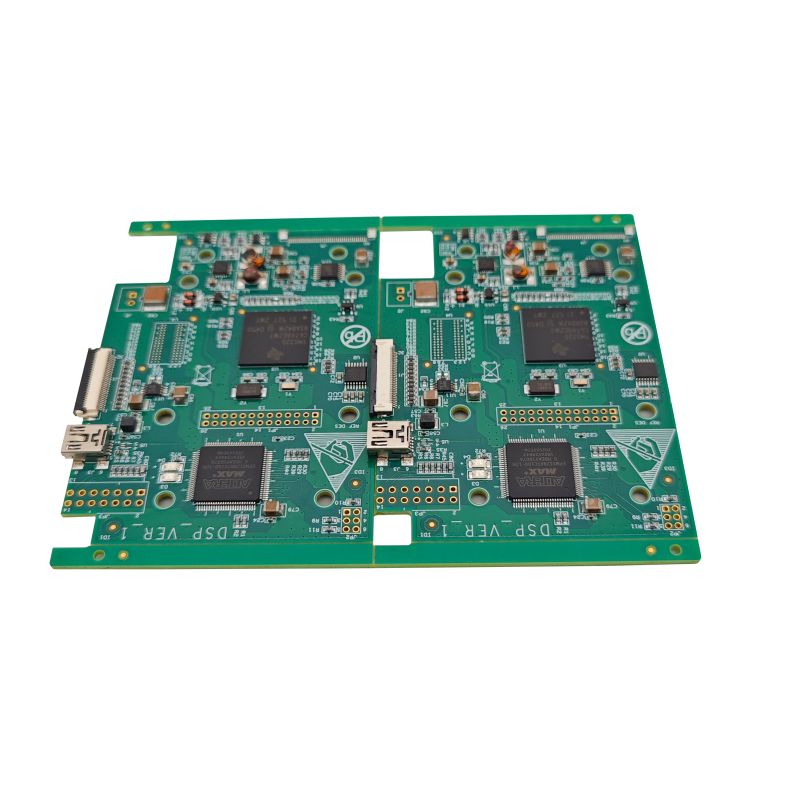

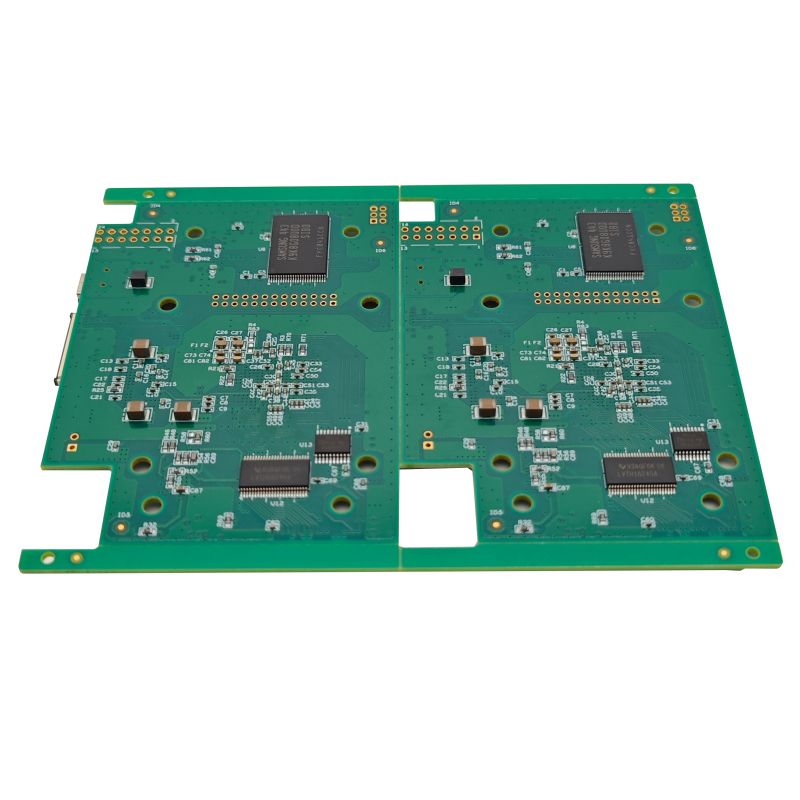

Smart Camera PCBA

Since 2008, Unixplore Electronics has been providing one-stop turnkey manufacture and supply services for high-quality Smart Camera PCBA in China,and establishing good partnership with customers from all over the world. We have been certified with ISO9001:2015 and adheres to the PCB assembly standard of IPC-610E.


Send Inquiry

Product Description

How to source a good manufacturer for your Smart Camera PCBA project?

We want to take this opportunity to introduce you to our high-quality Smart Camera PCBA at Unixplore Electronics. Our primary objective is to make sure that our customers fully comprehend the capabilities and features of our products. We are always eager to partner with our existing and new customers to foster a better future.

In order to source a good Smart Camera PCBA(Printed Circuit Board Assembly) factory, you should consider the following aspects:

Factory Scale and Professionalism: Ensure that the factory has sufficient scale and professionalism to meet the production needs of the Smart Camera PCBA. A complete Smart Camera PCBA production line should include equipment and other devices such as automatic solderpaste printing machines, high speed SMT machines, reflow soldering equipment, wavesoldering equipment, AOI inspection equipment, ICT online tester,etc. In addition, we must understand whether the equipment capabilities of the factory meet the processing requirements of the Smart Camera PCBA circuit board.

Quality Guarantee: Check whether the factory has passed the ISO9001 quality management system certification, whether it is assembled and produced in accordance with the IPC-A-610E electronic assembly acceptance standard, and whether there are SOP job descriptions and other required documents to guide employees' production work. These can reflect the quality management level of the factory.

Industry Experience: Understand the factory's operation time, the field of processing products, and the degree of difficulty in processing products. Selecting factories with rich industry experience, processing security or products in similar fields can ensure that the factory has the corresponding technical strength and production capacity.

Service Consciousness: Investigate the service awareness of the factory, including pre-sale services and after-sales service. A good factory should be able to provide customers with comprehensive services, including technical support, quality guarantee, delivery time and other guarantees.

Customer Feedback: By understanding the evaluation and feedback of the company that previously cooperated with the factory, you can better understand the strength and service level of the factory. You can view information such as successful cases and customer evaluation through the factory's official website.

In summary, to find a good Smart Camera PCBA factory, you need to comprehensively consider the scale, professionalism, quality assurance, industry experience, service awareness, and customer feedback of the factory. Through various inspections and comparisons, choosing a factory that is most suitable for you can ensure the production quality and efficiency of the Smart Camera PCBA.

Unixplore provides one-stop Turn-Key service for your EMS project. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!

Smart Camera PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB fabricate, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter Capability
Layers 1-40 layers
Assembly Type Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size 0201(01005 Metric)
Maximum Component Size 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width 0.10 mm (4 mil)
Minimum Trace Clearance 0.10 mm (4 mil)
Minimum Drill Size 0.15 mm (6 mil)
Maximum Board Size 18 in x 24 in (457 mm x 610 mm)
Board Thickness 0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type Leaded or Lead-Free
Copper Thickness 0.5OZ – 5 OZ
Assembly Process Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Smart Camera PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance

PCBA Production Procedure

  • Smart Camera PCBA

    1. Automatic solderpaste printing

  • Smart Camera PCBA

    2. solderpaste printing done

  • Smart Camera PCBA

    3. SMT pick and place

  • Smart Camera PCBA

    4. SMT pick and place done

  • Smart Camera PCBA

    5. ready for reflow soldering

  • Smart Camera PCBA

    6. reflow soldering done

  • Smart Camera PCBA

    7. ready for AOI

  • Smart Camera PCBA

    8. AOI inspection process

  • Smart Camera PCBA

    9. THT component placement

  • Smart Camera PCBA

    10. wave soldering process

  • Smart Camera PCBA

    11. THT assembly done

  • Smart Camera PCBA

    12. AOI Inspection for THT assembly

  • Smart Camera PCBA

    13. IC programming

  • Smart Camera PCBA

    14. function test

  • Smart Camera PCBA

    15. QC Check and Repair

  • Smart Camera PCBA

    16. PCBA conformal coating Process

  • Smart Camera PCBA

    17. ESD packing

  • Smart Camera PCBA

    18. Ready for Shipping



Smart Camera PCBA
Smart Camera PCBA
For Finished Product

Smart Camera PCBA
Smart Camera PCBA
