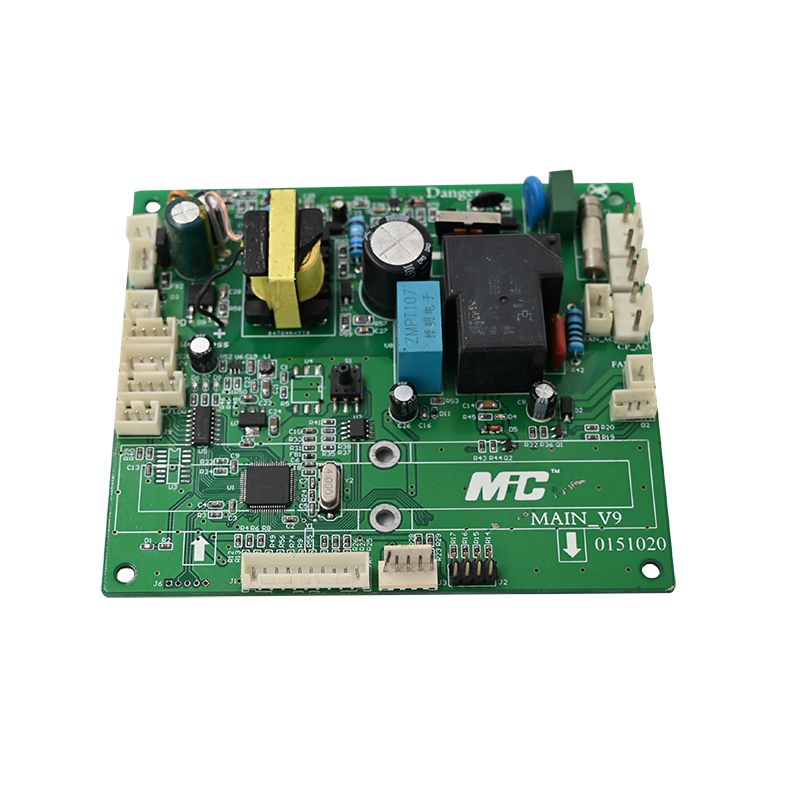

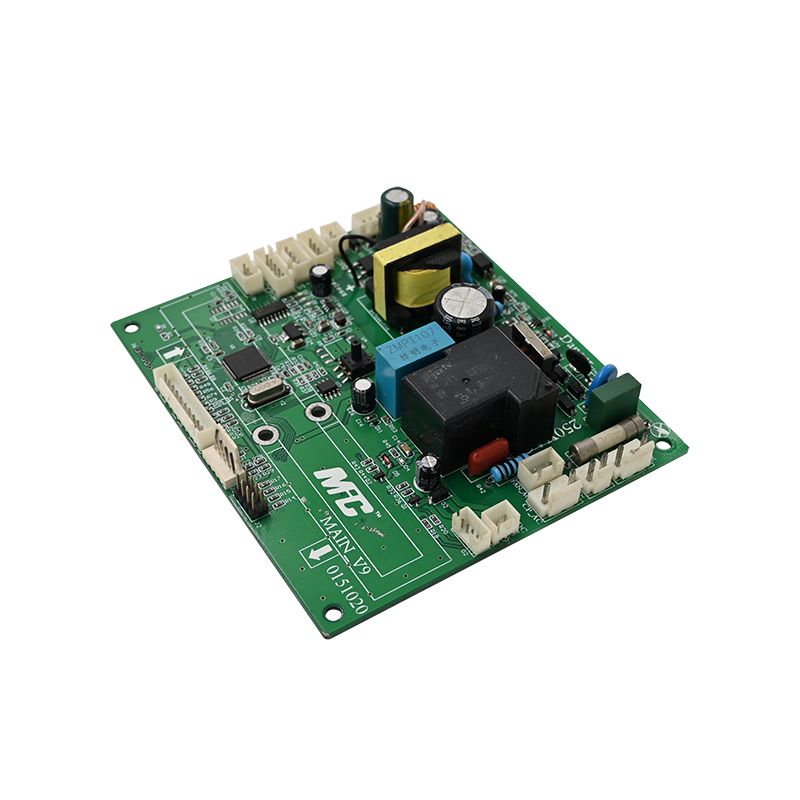

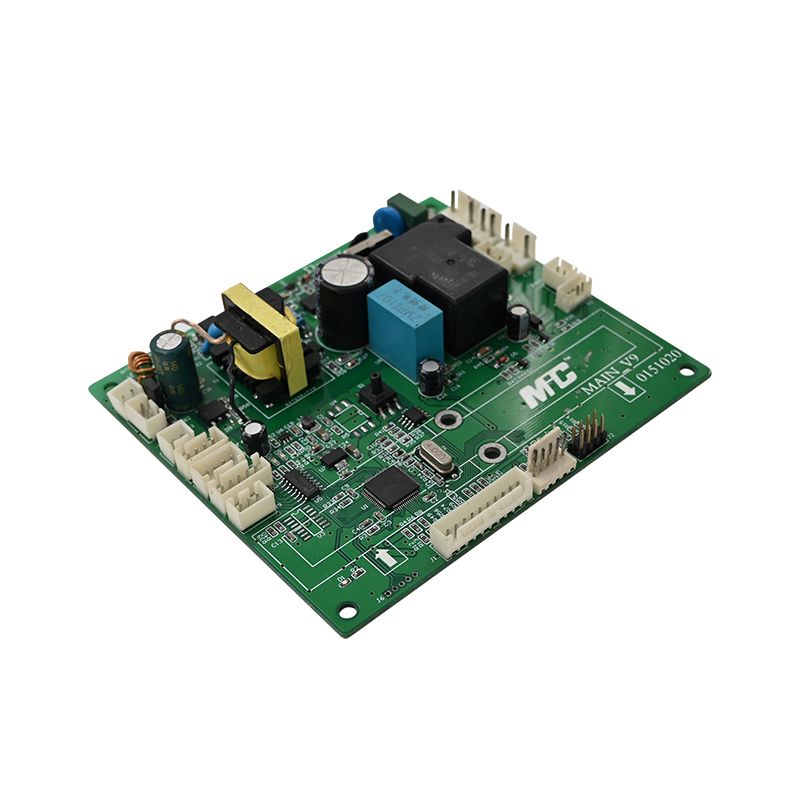

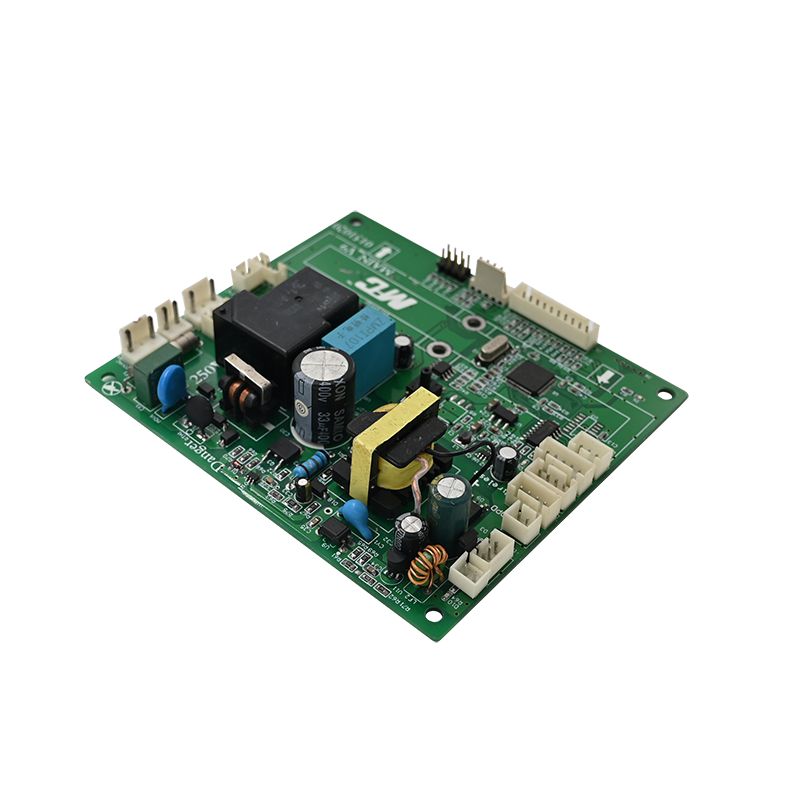

Electronic Air Pump PCBA
  • Electronic Air Pump PCBAElectronic Air Pump PCBA
  • Electronic Air Pump PCBAElectronic Air Pump PCBA
  • Electronic Air Pump PCBAElectronic Air Pump PCBA
  • Electronic Air Pump PCBAElectronic Air Pump PCBA

Electronic Air Pump PCBA

Unixplore Electronics has been devoted to high quality electronic air pump PCBA manufacture and supply in China since 2008 with certification of ISO9001:2015 and PCB assembly standard IPC-610E.

Send Inquiry

Product Description

How to find a reliable supplier for your electronic air pump PCBA control board?

At Unixplore Electronics you can find a wide range of Chinese made electronic air pump PCBA options. We provide competitive prices and professional after -sales services. We are also eager to cooperate and build a affordable partnership.

Electronic air pump product characteristics:

● compact, easy to carry.
● Direct-drive strong motor, no gear friction noise, high power, high efficiency, fast inflating speed.
● A complete set of inflating mouth is suitable for tires, rubber boats, inflatable beds, air cushions, inflatable toys, spherical inflatable and other uses.
● There is an air pressure display table, which can accurately measure the pneumatic pressure of the tire, so that the car tire keeps normal tire pressure at any time.
● There is a preset value to control the shutdown function, and the air pump is automatically stopped after the air pressure reaches the preset value, which can prevent bursting tires and balloon.

The design of the electronic air pump PCBA circuit board needs to consider the following aspects:

Power management: It needs to manage the input and output of the power supply to ensure that the power supply can stably supply the air pump.
Control circuit: It needs to control the switch and adjustment of the inflatable pump, as well as communication with other systems of the car.
Component selection: The components on the circuit board need to be suitbale for electronic air pumps to ensure stability and reliability.
Manufacturing process: The manufacturing process of the circuit board needs to consider the aspects of anti-interference, dustproof, waterproof, etc. to ensure the quality and performance of the product.

Unixplore provides one-stop turnkey service for your EMS project. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!

Electronic Air Pump PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter Capability
Layers 1-40 layers
Assembly Type Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size 0201(01005 Metric)
Maximum Component Size 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width 0.10 mm (4 mil)
Minimum Trace Clearance 0.10 mm (4 mil)
Minimum Drill Size 0.15 mm (6 mil)
Maximum Board Size 18 in x 24 in (457 mm x 610 mm)
Board Thickness 0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type Leaded or Lead-Free
Copper Thickness 0.5OZ – 5 OZ
Assembly Process Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Car Inverter PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance

PCBA Production Procedure

  • Electronic Air Pump PCBA

    1. Automatic solderpaste printing

  • Electronic Air Pump PCBA

    2. solderpaste printing done

  • Electronic Air Pump PCBA

    3. SMT pick and place

  • Electronic Air Pump PCBA

    4. SMT pick and place done

  • Electronic Air Pump PCBA

    5. ready for reflow soldering

  • Electronic Air Pump PCBA

    6. reflow soldering done

  • Electronic Air Pump PCBA

    7. ready for AOI

  • Electronic Air Pump PCBA

    8. AOI inspection process

  • Electronic Air Pump PCBA

    9. THT component placement

  • Electronic Air Pump PCBA

    10. wave soldering process

  • Electronic Air Pump PCBA

    11. THT assembly done

  • Electronic Air Pump PCBA

    12. AOI Inspection for THT assembly

  • Electronic Air Pump PCBA

    13. IC programming

  • Electronic Air Pump PCBA

    14. function test

  • Electronic Air Pump PCBA

    15. QC Check and Repair

  • Electronic Air Pump PCBA

    16. PCBA conformal coating Process

  • Electronic Air Pump PCBA

    17. ESD packing

  • Electronic Air Pump PCBA

    18. Ready for Shipping


Packaging

For PCBA

Electronic Air Pump PCBA
Electronic Air Pump PCBA
For Finished Product

Electronic Air Pump PCBA
Electronic Air Pump PCBA
