Electric Actuator PCBA

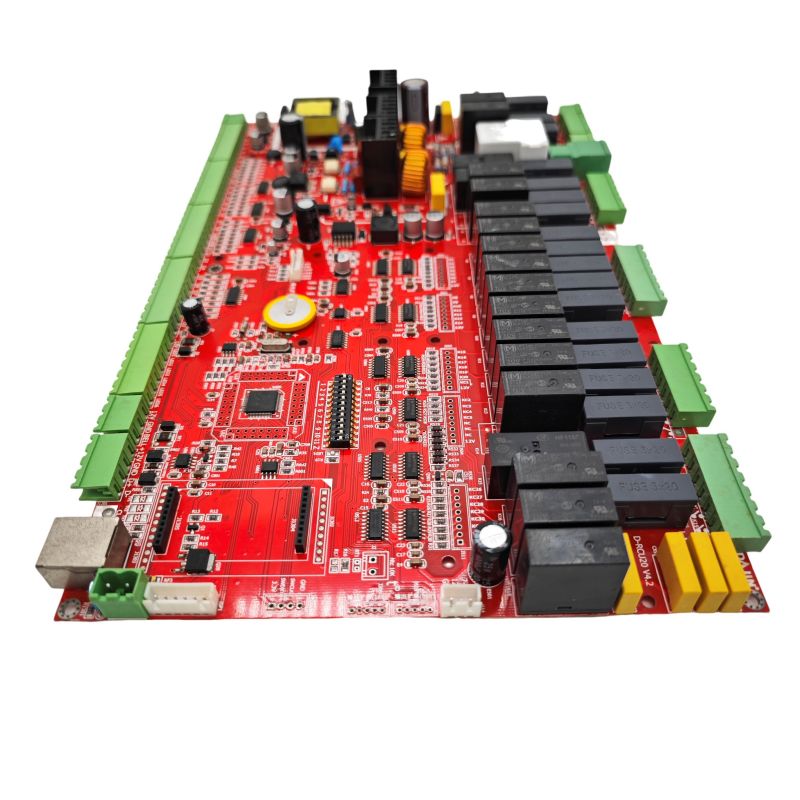

  • Electric Actuator PCBAElectric Actuator PCBA

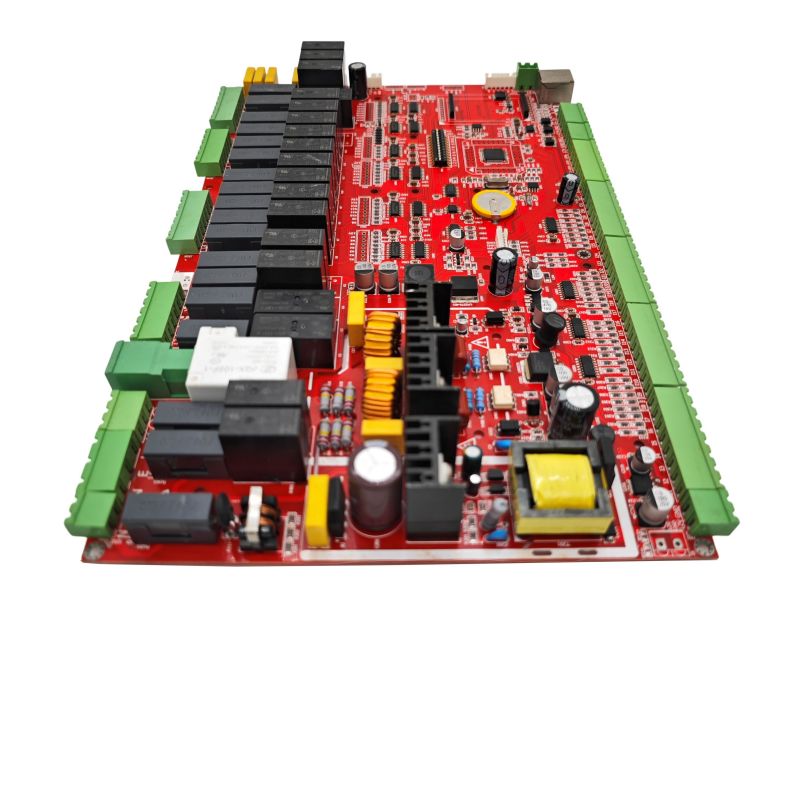

  • Electric Actuator PCBAElectric Actuator PCBA

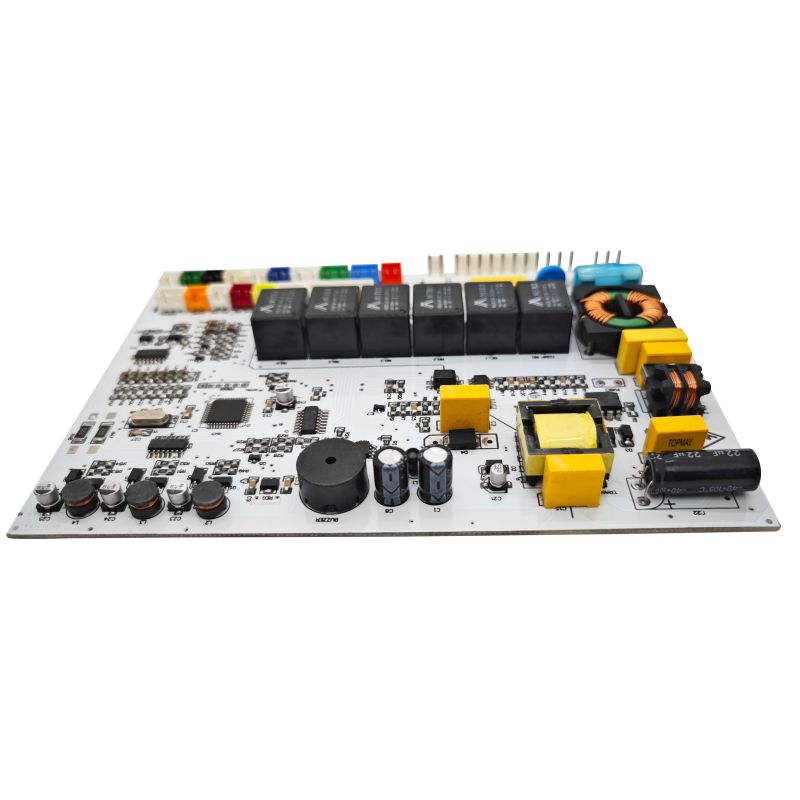

  • Electric Actuator PCBAElectric Actuator PCBA

Electric Actuator PCBA

Unixplore Electronics specializes in one-stop turnkey manufacture and supply for Electric Actuator PCBA in China since 2008 with certification of ISO9001:2015 and PCB assembly standard IPC-610E,which is widely used in various industrial control equipments and automation systems.


Send Inquiry

Product Description

What is Electric Actuator PCBA?

Unixplore Electronics is proud to offer you Electric Actuator PCBA. Our goal is to ensure that our customers are fully aware of our products and their functionality and features. We sincerely invite new and old customers to cooperate with us and move towards a prosperous future together.

Electric actuator PCBA refers to the Printed Circuit Board Assembly part used to drive the electric actuator. Electric actuator refers to a device that can convert electrical energy into mechanical energy to drive mechanical devices and perform motion control. It is usually used in process control, flow control, pneumatic devices, automated warehousing and other fields.

Electric actuator PCBA can utilize different types of controllers, sensors and logic algorithms to customize designs for specific end applications to achieve exponentially improved dynamic response and positioning accuracy. Usually includes the following main functions:

Control logic: Through program control, accurate control and positioning of the electric actuator is achieved, improving system optimization and stability.

Control interface: Control the rotation direction, speed, etc. of the electric actuator through the signal interface.

Sensors: Integrated acquisition sensors to detect the motor's movement, speed, potentiometer position, etc. can provide auxiliary control for actuator control, and reduce system lag and noise through feedback control loops.

Protection function: Through protection measures, such as overcurrent, overvoltage, back electromotive force, short circuit and other circuit protection, the integrity and safety of the electric actuator and the application are guaranteed.

Data communication: Supports multiple communication protocols and interfaces for data transmission and storage, as well as remote communication and monitoring with the cloud or other devices.

As one of the cores of driving electric actuators, electric actuator PCBA has the characteristics of high speed and high reliability. It can be customized and developed according to application scenarios and terminal needs, and can meet various industrial applications and automation control. needs.

Unixplore provides one-stop TURN-KEY service for your EMS project. Feel free to contact us for your board building, we can make a quotation in 24 hours after we receive your Gerber file and BOM list!

Electric Actuator PCBA Manufacture

* Gerber file and BOM list supplied by client
* Blank PCB made, components purchased by us
* PCB fabrication with parts fully assembled
* 100% Function Tested OK before shipping
* RoHS compliant, Lead-free manufacturing process
* Quick delivery, with independent ESD package
* One stop electronic manufacturing service for PCB design, PCB layout, PCB manufacture, components procurement, PCB SMT and DIP assembly, IC programming, function test, packaging and delivery

Unixplore PCB & PCB Assembly Capability

Parameter Capability
Layers 1-40 layers
Assembly Type Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT)
Minimum Component Size 0201(01005 Metric)
Maximum Component Size 2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Component Package Types BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, DIP, SIP, etc.
Minimum Pad Pitch 0.5 mm (20 mil) for QFP, QFN, 0.8 mm (32 mil) for BGA
Minimum Trace Width 0.10 mm (4 mil)
Minimum Trace Clearance 0.10 mm (4 mil)
Minimum Drill Size 0.15 mm (6 mil)
Maximum Board Size 18 in x 24 in (457 mm x 610 mm)
Board Thickness 0.0078 in (0.2 mm) to 0.236 in (6 mm)
Board Material CEM-3,FR-2,FR-4, High-Tg, HDI, Aluminum, High Frequency, FPC, Rigid-Flex, Rogers, etc.
Surface Finish OSP, HASL, Flash Gold, ENIG, Gold Finger, etc.
Solder Paste Type Leaded or Lead-Free
Copper Thickness 0.5OZ – 5 OZ
Assembly Process Reflow Soldering, Wave Soldering, Manual Soldering
Inspection Methods Automated Optical Inspection (AOI), X-ray, Visual Inspection
Testing Methods In-House Functional Test, Probe Test, Aging Test, High and Low Temperature Test
Turnaround Time Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Assembly Standards ISO9001:2015; ROHS, UL 94V0, IPC-610E class ll

Unixplore Value-Added EMS Service

● IC pre-programming service with file in format of HEX,ELF and BIN.
● Electric Actuator PCBA Function test fixture customized according to client’s test requirements
● Box building service including plastic & metal case mold and part production
● Conformal coating including selective lacquer coating, epoxy resin potting
● Wire harness and cable assembly
● Finished product assembly including box, screen, membrane switch, labelling and customized carton or retail box packing.
● Various third-party tests for PCBA are available upon request
● Product Certification Assistance

PCBA Production Procedure

  • Electric Actuator PCBA

    1. Automatic solderpaste printing

  • Electric Actuator PCBA

    2. solderpaste printing done

  • Electric Actuator PCBA

    3. SMT pick and place

  • Electric Actuator PCBA

    4. SMT pick and place done

  • Electric Actuator PCBA

    5. ready for reflow soldering

  • Electric Actuator PCBA

    6. reflow soldering done

  • Electric Actuator PCBA

    7. ready for AOI

  • Electric Actuator PCBA

    8. AOI inspection process

  • Electric Actuator PCBA

    9. THT component placement

  • Electric Actuator PCBA

    10. wave soldering process

  • Electric Actuator PCBA

    11. THT assembly done

  • Electric Actuator PCBA

    12. AOI Inspection for THT assembly

  • Electric Actuator PCBA

    13. IC programming

  • Electric Actuator PCBA

    14. function test

  • Electric Actuator PCBA

    15. QC Check and Repair

  • Electric Actuator PCBA

    16. PCBA conformal coating Process

  • Electric Actuator PCBA

    17. ESD packing

  • Electric Actuator PCBA

    18. Ready for Shipping



Electric Actuator PCBA
Electric Actuator PCBA
For Finished Product

Electric Actuator PCBA
Electric Actuator PCBA
